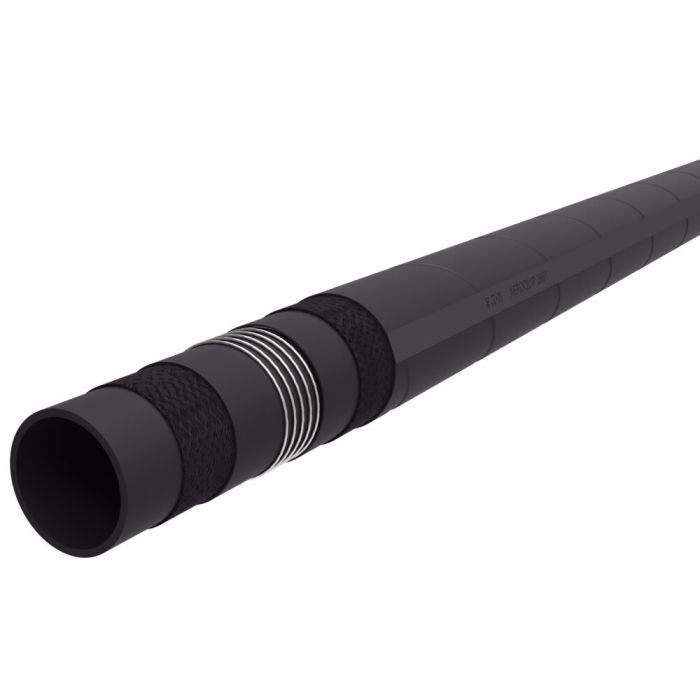

AQP Wire Inserted Suction SAE 100R4 Blue Hose, 0.75 Inch ID, Up To 300.00 PSI

Abrasion Resistance 29	Application Suction application for hydraulic, lubrication oils, gasoline, air, water and chemical transfer.	Color Blue	Conductivity 30	Construction 2-ply braid	Cover Material Elastomer	Dash Size -12	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Hose I.D. 0.75	Hose O.D. 1.25	Impulse Cycle Life 500000 cycle	Lay Line Style Embossed	Maximum Operating Pressure 300	Minimum Bend Radius 5	Minimum Working Temperature -40	Reel Qty (ft) Rolls Only	Reinforcement Material Helical Wire and Textile	Supplier Part Number 2661-12	Tube Material Synthetic Rubber	Vacuum Service 28	Alternate Part Numbers Alternate Part Number C1BJ20	Product Weight 1.34 lbs

Product Questions & Answers 2

Product Questions & Answers

got a suction line that needs 3/4 inch hose, is this one actually 0.75" ID and what dash size is it

Question by: Darryl J on Dec 6, 2025, 3:13 PM

For sizing, it’s a 0.75 inch inside diameter hose and it’s listed as dash size -12.

Answer by: Customer Support on Dec 7, 2025, 4:54 PM

what all can this hose handle fluid-wise? trying to figure out if it'll work for more than just hydraulic oil on our equipment

Question by: Ronnie M on Oct 12, 2025, 5:07 PM

Suction lines pulling hydraulic fluid are the obvious fit, but this hose is also rated for lubrication oils, gasoline, air, water, and chemical transfer. So if you're running multiple fluid types through different parts of the same setup, there's a good chance this one covers more of your needs than you'd expect from a single hose spec.

Answer by: Customer Support on Oct 14, 2025, 6:09 AM

Similar Products

Model Number	Hose I.D.	Hose O.D.	Maximum Operating Pressure	Minimum Bend Radius	Vacuum Service	Reel Qty (ft)
2661-20	1.25	1.8	200	8	28	Rolls Only
2661-16	1	1.5	250	6	28	Rolls Only
2661-24	1.5	2.06	150	10	28	Rolls Only
2661-32	2	2.55	100	12	28	Rolls Only
2661-12	0.75	1.25	300	5	28	Rolls Only
