AQP Wire Inserted Suction SAE 100R4 Blue Hose

Application	Suction and transfer applications for petroleum and phosphate ester hydraulic fluids, fuel, lubricating oils, gasoline, water and many other industrial fluids. Please review the general guidelines for selection, installation and maintenance of hose assemblies starting on

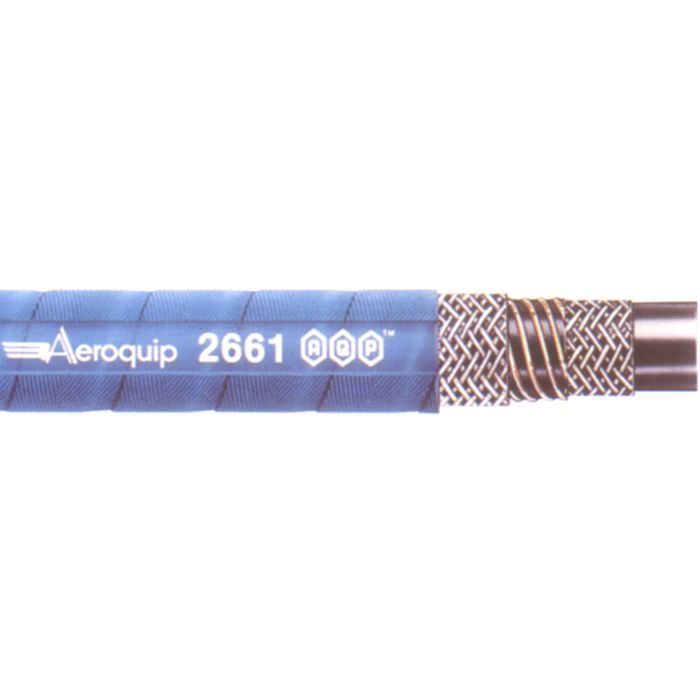

Construction	AQP® elastomer tube, reinforcement consisting of a helical wire between two textile braids and blue AQP® elastomer cover.
Crimp Fittings	Global TTC (Steel, Stainless Steel), -12 requires buffing, -20 requires 1AT or 1AV part number. Global TTC12, -12 only, no buffing required. Field Crimp, 12 and -16 only.
Fitting Attachment	T-Bolt Clamps (stainless band)
Industrial Reusable Fittings & Attachment Suggestions	Shank Type Combination Nipples attached with T-Bolt Band Clamps or Preformed Clamps.
Note	Maximum working pressure for clamped hose assembly is 50 psi.
Reusable Fittings	Shank Type Combination Nipples (Steel, Stainless Steel)
Temperature Range	-40°F to +300°F.

Products

Model Number	Hose I.D.	Hose O.D.	Maximum Operating Pressure	Minimum Bend Radius	Vacuum Service	Reel Qty (ft)
2661-20	1.25	1.8	200	8	28	Rolls Only
2661-16	1	1.5	250	6	28	Rolls Only
2661-24	1.5	2.06	150	10	28	Rolls Only
2661-32	2	2.55	100	12	28	Rolls Only
2661-12	0.75	1.25	300	5	28	Rolls Only
