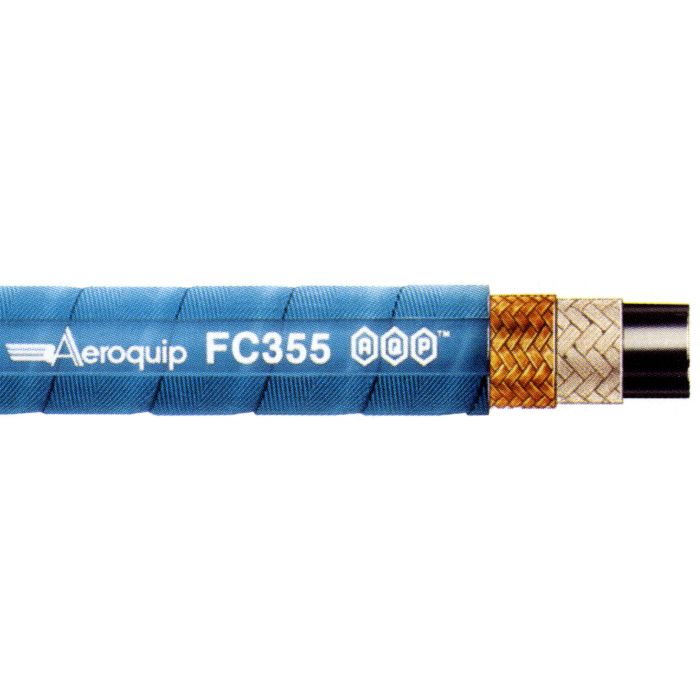

AQP Engine & Air Brake Blue Hose
Application |
Air, gasoline, fuel, lubricating oils and coolants. Please review the general guidelines for selection, installation and maintenance of hose assemblies starting on |
Construction |
AQP® elastomer tube, polyester inner braid and a single wire braid reinforcement, blue AQP® elastomer cover. |
Temperature Range |
-40°F to +300°F, except air, not to exceed 250 PSI or +250°F. |
Products
| Model Number | Hose I.D. | Hose O.D. | Maximum Operating Pressure | Burst Pressure | Minimum Bend Radius | Vacuum Service | Reel Qty (ft) | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|---|
| FC355-16 | 0.88 | 1.24 | 400 | 3.5 | 15 | Rolls Only |
|
||
| FC355-20 | 1.13 | 1.52 | 300 | 4.5 | 15 | Rolls Only |
|
||
| FC355-04 | 0.19 | 0.52 | 1500 | 0.75 | 28 | 510-670 |
|
||
| FC355-06 | 1.25 |
|
|||||||
| FC355-24 | 1.38 | 1.75 | 250 | 5.5 | 11 | Rolls Only |
|
