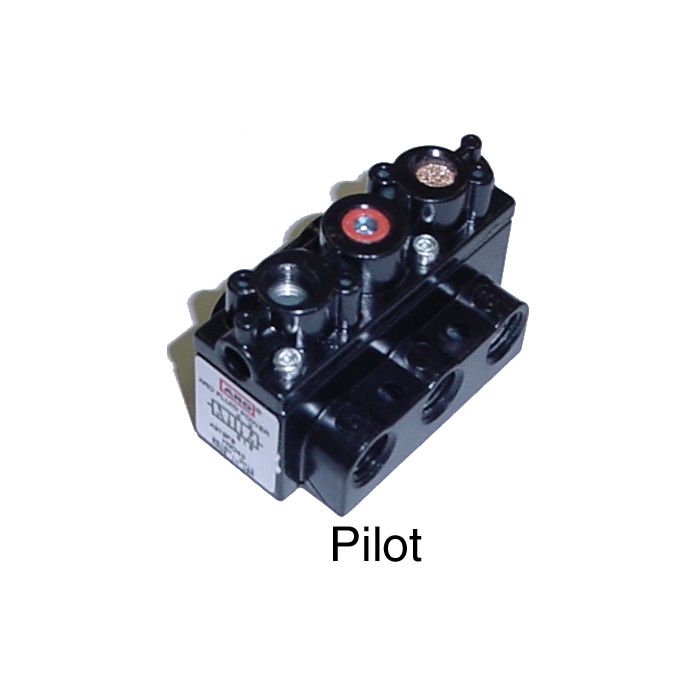

Alpha Series Pilot-Operated Pneumatic Valves, Up To 61 SCFM
Application |
For stand alone or remote valve applications. |
Features |
Compact space saving design. Ports have ISO identification. Large air passages result in high flow capability. Fast signal response times (14ms Double Pilot, 19ms Single Pilot On, 26ms Single Pilot Off). |
Flow Rating |
Based on 100 PSIG input and 85 PSIG output. |
Lubrication |
Not required. |
Materials |
Zinc body. Urethane and Viton® bonded precision ground spools. |
Operating Pressure Range |
Vacuum to 150 PSI. |
Temperature Range |
0°F to 180°F. |
Products
| Model Number | Valve Type | Spool Action | Ports | Flow Rating (SCFM) | CV Factor | Minimum Pilot Pressure | Spool Material | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|---|
| A212PS | 4-way 2-position | Spring Return | 1/4 NPT (Side) | 50 | 1.5000 | 50 | Urethane |
|
