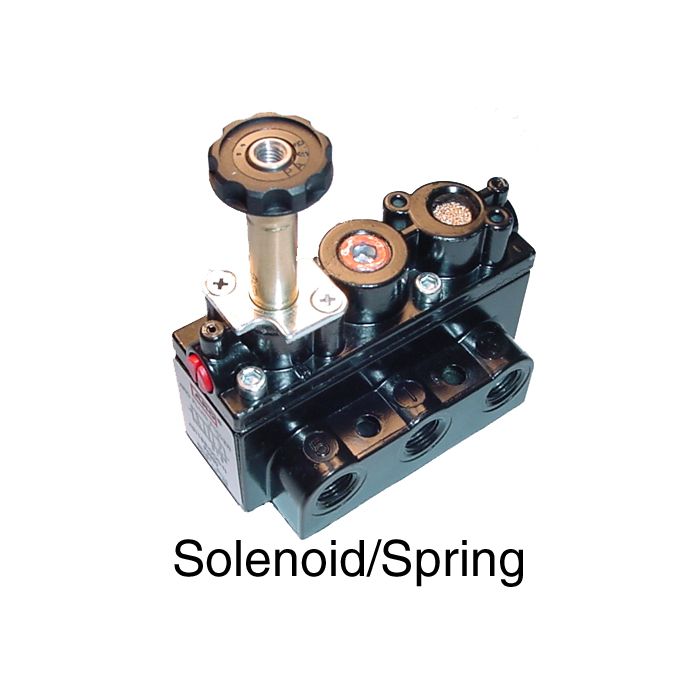

Alpha Series Solenoid Operated Pneumatic Valves, Up To 61 SCFM

Application	For stand alone or remote valve applications. Optional external solenoid supply plug kit (119306) allows valve to be used in vacuum and low pressure applications (Contact us for details).
Coil	Coils are UL-listed and comply with CSA standards. AC and DC coils are interchangeable on the same solenoid stem. UL File #MH13513, CSA File #LR51090. Class F coils are rated for 100% duty cycle. Coil connectors meet Nema 4 classification.
Features	Compact space saving design. Ports have ISO identification. Large air passages result in high flow capability. Fast signal response times (20ms Double Solenoid, 22ms Single Solenoid Energize, 27ms Single Solenoid De-energize). High Cycle Rate of 600 cycles per minute.
Flow Rating	Based on 100 PSIG input and 85 PSIG output.
Lubrication	Not required.
Materials	Zinc body. Urethane and Viton® bonded precision ground spools.
Minimum Shift Pressure	50 PSI (Single Solenoid), 20 PSI (Double Solenoid).
Operating Pressure Range	Vacuum to 150 PSI.
Recommended Filtration	40 micron recommended.
Temperature Range	0°F to 180°F.

Products

Model Number	Valve Type	Spool Action	Ports	Flow Rating (SCFM)	CV Factor	Spool Material	Coil	Price	Buy Now
A212SS-000-N	4-way 2-position	Spring Return	1/4 NPT (Side)	50	1.5000	Urethane	Not Included
A212SD-000-N	4-way 2-position	Solenoid Return	1/4 NPT (Side)	50	1.5000	Urethane	Not Included
