Air & Multipurpose Textile Braid Low Pressure Socketless Hose
Application |
For gasoline, fuel and lubricating oils, air and water. NOT recommended for marine fuel lines. NOT recommended for hydraulic impulse applications, and is NOT approved for air brake applications. Please review the general guidelines for selection, installation and maintenance of hose assemblies starting on |
Construction |

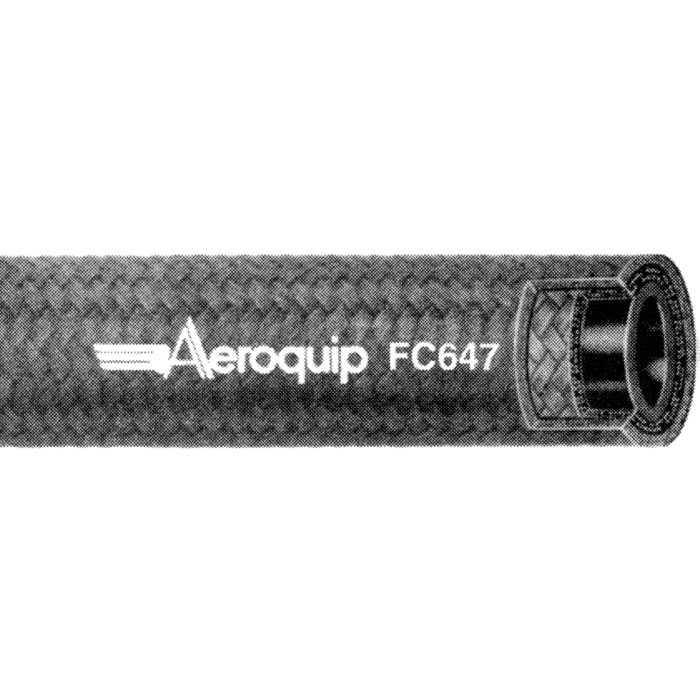

Synthetic rubber tube, textile braid reinforcement, polyester braided cover. |
Temperature Range |
-40°F to +212°F. Water not to exceed +150°F. Air not to exceed +165°F. |
Products
| Model Number | Hose I.D. | Hose O.D. | Maximum Operating Pressure | Burst Pressure | Minimum Bend Radius | Vacuum Service | Reel Qty (ft) | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|---|
| FC647-08BLK | 0.5 | 0.79 | 300 | 5 | 28 | Rolls Only |
|
||
| FC647-10BLK | 0.63 | 0.92 | 250 | 6 | 18 | Rolls Only |
|
