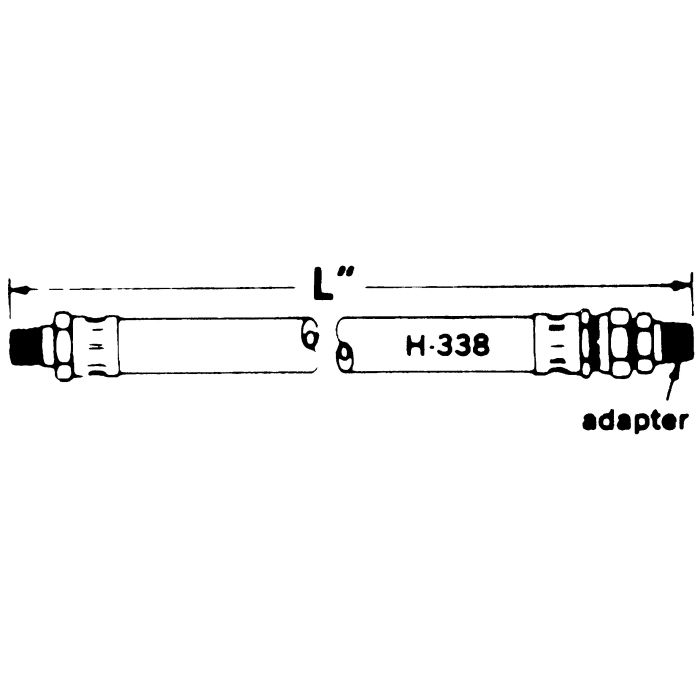

Air Brake Air Chamber Hose Assembly, 1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose

Brand Royal Brass & Hose	Brand Royal Brass & Hose	Pack Size 1.00	UOM EA	Hose I.D. 0.38	Includes 1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose	L 36.13	Supplier Part Number 06ABX4X36	Thread Sealant No	Alternate Part Numbers Alternate Part Number 38166-03612, Alternate Part Number C1ER70	Product Weight 7.00 lbs

Product Questions & Answers 2

Product Questions & Answers

What's the temperature range on this hose assembly? Got rigs running in some pretty brutal winters and hot summers both, need to know it'll hold up.

Question by: Brent G on May 30, 2025, 9:54 PM

Rated from -40°F up to +200°F, so it handles both hard freezes and high-heat summer conditions without issue. For air brake chamber lines running through seasonal extremes, that range covers just about anything you'd throw at it in regular over-the-road or fleet use.

Answer by: Customer Support on Jun 1, 2025, 6:06 AM

trying to replace an air brake chamber line i’ve got, what are the ends on this hose assembly?

Question by: Jimmy E on Mar 5, 2026, 1:01 PM

Both ends are 1/4 inch male pipe threads, but one side is a rigid male pipe and the other side is a 1/4 inch male pipe swivel adapter. The hose itself is 3/8 inch I.D. and the overall assembly length is 36.125 inches.

Answer by: Customer Support on Mar 6, 2026, 3:01 PM

Similar Products

Model Number	Hose I.D.	Includes	L
W28472	0.375	1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose	24.125
W28473	0.375	1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose	28.375
W28539	0.375	1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose	20.375
W28555	0.375	1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose	36.125
W28559	0.375	1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose	41.125
W86471	0.5	3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose	18
W86472	0.5	3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose	24
W86473	0.5	3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose	28.375
W86550	0.5	3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose	30
W86554	0.5	3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose	34.375
W86555	0.5	3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose	36
W86559	0.5	3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose	41.125
