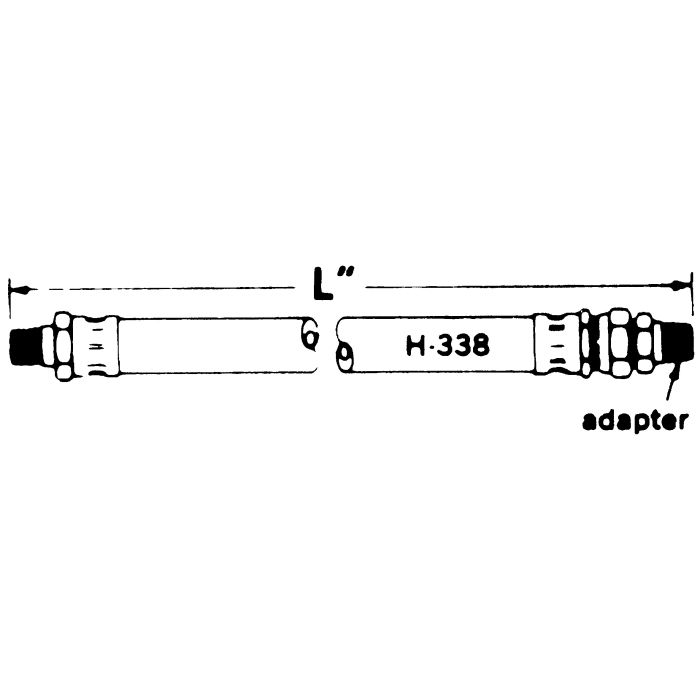

Air Brake Air Chamber Hose Assembly, 1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose

Brand Royal Brass & Hose	Brand Royal Brass & Hose	Pack Size 1.00	UOM EA	Hose I.D. 0.38	Includes 1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose	L 24.13	Supplier Part Number 06ABX4X24	Thread Sealant No	Alternate Part Numbers Alternate Part Number 06ABX4X24, Alternate Part Number 38166-02412, Alternate Part Number C1ER64	Product Weight 2.00 lbs

Product Questions & Answers 2

Product Questions & Answers

got a 3/8 air brake chamber line, is this one the 24 inch hose with 1/4 male pipe ends and a swivel on one side?

Question by: Lance A on Dec 27, 2025, 9:33 AM

For air brake air chamber hose lines, this assembly is built with a 3/8 inch inner diameter hose and the ends are 1/4 male pipe on one side and a 1/4 male pipe swivel adapter on the other. Overall length is listed as 24.125 inches.

Answer by: Customer Support on Dec 28, 2025, 3:26 PM

What's the temp range on this hose assembly? Got equipment running in some pretty cold winters and hot summers, want to make sure it holds up.

Question by: Hubert F on Aug 3, 2025, 7:00 PM

Rated from -40°F up to 200°F, so it handles both hard freezes and summer heat without issue. That range covers most seasonal extremes you'd run into with working equipment, and the synthetic inner tube and perforated cover construction are part of what makes that range possible.

Answer by: Customer Support on Aug 4, 2025, 8:47 PM

Similar Products

Model Number	Hose I.D.	Includes	L
W28472	0.375	1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose	24.125
W28473	0.375	1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose	28.375
W28539	0.375	1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose	20.375
W28555	0.375	1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose	36.125
W28559	0.375	1/4 Male Pipe x 1/4 Male Pipe Swivel Adapter x 3/8 Hose	41.125
W86471	0.5	3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose	18
W86472	0.5	3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose	24
W86473	0.5	3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose	28.375
W86550	0.5	3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose	30
W86554	0.5	3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose	34.375
W86555	0.5	3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose	36
W86559	0.5	3/8 Male Pipe x 3/8 Male Pipe Swivel Adapter x 1/2 Hose	41.125
