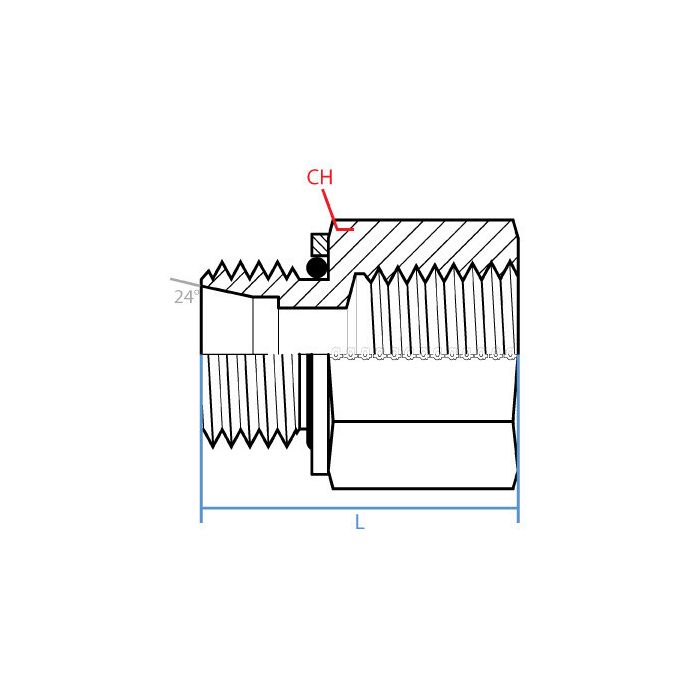

Male Din (Sealed) X Female Npt

CH Width
50mm
L Length
57.5mm
Adaptall Material
Steel
Adaptall Shape
Straight
Side 1 Callout
M42 X 2.0
Side 1 Gender
M
Side 1 Size
S30
Side 1 Type
Din Tube
Side 2 Callout
1-1/4 - 11.5 NPTF
Side 2 Gender
F
Side 2 Size
1-1/4"
Side 2 Type
Npt
Alternate Part Numbers
Alternate Part Number MI-08738424, Alternate Part Number MINO-03671X98000
Brand
Adaptall America
Brand
Adaptall
Pack Size
1.00
UOM
EA
Supplier Part Number
9636S-42-S30-20
Product Weight
0.99 lbs

Product Questions & Answers

got a hose end that’s 1-1/4 NPTF female. will this adapter screw into it and give me a DIN 2353 S side on the other end?
Question by: Ronnie S on Jun 11, 2025, 6:14 AM
On the NPT side, it is a 1-1/4 inch 11.5 NPTF female thread. The other end is a male Metric DIN 2353 S connection, M42 x 2.0 with an S30 DIN tube size, so it is meant to transition from that NPTF female port to a DIN 2353 S male connection.
Answer by: Customer Support on Jun 13, 2025, 6:08 AM
Got a line running 1-1/4 inch NPTF female port on a manifold block and need to tie in some metric DIN tube on the other end. this fitting do that job?
Question by: Lee W on Dec 7, 2025, 2:32 PM
That's the pairing this adapter handles. One end is a Male M42 x 2.0 DIN 2353 S sealed metric connection, and the other end threads into a 1-1/4 inch 11.5 NPTF female port. Steel construction, straight configuration, so it drops right in without any awkward routing. At 57.5mm long and 50mm across the wrench flats, it fits cleanly into tight hydraulic connections runs without a lot of fuss.
Answer by: Customer Support on Dec 9, 2025, 9:37 AM
So this fitting has a metric DIN on one side and NPT on the other? Just want to make sure I'm ordering the right thing.
Question by: Ricky L on Dec 8, 2025, 12:02 PM
That's correct. It has a Male Metric DIN 2353 S connection (M42 x 2.0) on one side, and a Female NPTF thread (1-1/4 - 11.5) on the other.
Answer by: Customer Support on Dec 9, 2025, 7:56 PM
