Male Din (Sealed) X Female Npt 9636S-42-S30-16

Specifications

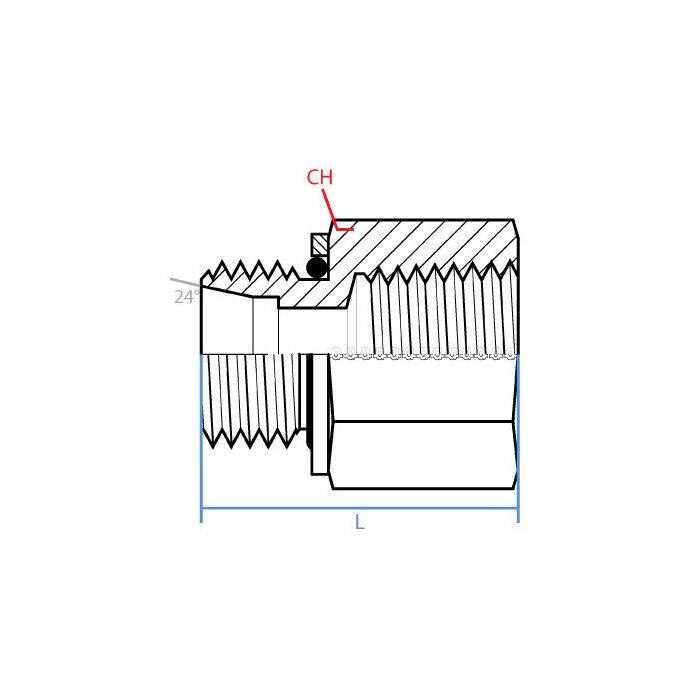

CH Width 50mm	L Length 57.7mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M42 X 2.0	Side 1 Gender M	Side 1 Size S30	Side 1 Type Din Tube	Side 2 Callout 1 - 11.5 NPTF	Side 2 Gender F	Side 2 Size 1"	Side 2 Type Npt	Alternate Part Numbers Alternate Part Number MI-06253959, Alternate Part Number MINO-03671X54863	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9636S-42-S30-16	Product Weight 1.10 lbs

Product Questions & Answers 3

Product Questions & Answers

what's the thread size on the NPT end of this adapter? trying to match it up to a 1-inch female port on a hydraulic manifold

Question by: Harold R on Dec 4, 2025, 2:31 PM

The NPT side is a 1-inch female connection with 11.5 threads per inch, which is standard NPTF. That'll mate up fine with a 1-inch male NPT fitting or port on your manifold.

Answer by: Customer Support on Dec 6, 2025, 10:21 AM

Will this here adapter work to connect a metric DIN to a female NPT setup?

Question by: Brett W on Aug 6, 2025, 8:12 PM

Yes, this Adaptall adapter is designed specifically for connecting an M42 X 2.0 Male Din Tube to a 1 - 11.5 NPTF Female connection.

Answer by: Customer Support on Aug 8, 2025, 7:08 PM

trying to hook a metric DIN tube line to an NPT port, is this the right adapter?

Question by: Dean P on Nov 7, 2025, 1:30 PM

For tying those two standards together, this part goes from an M42 x 2.0 male DIN 2353 S tube connection (S30) on one end to a 1 inch 1-11.5 NPTF female on the other, in a straight steel body.

Answer by: Customer Support on Nov 8, 2025, 2:13 PM
