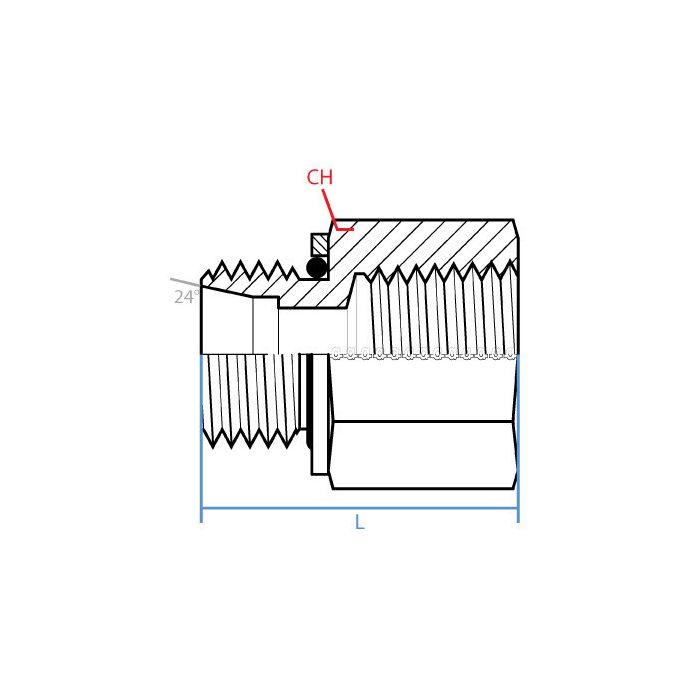

Male Din (Sealed) X Female Npt

CH Width 36mm	L Length 40.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M24 X 1.5	Side 1 Gender M	Side 1 Size S16	Side 1 Type Din Tube	Side 2 Callout 3/4 - 14 NPTF	Side 2 Gender F	Side 2 Size 3/4"	Side 2 Type Npt	Alternate Part Numbers Alternate Part Number MI-04711837, Alternate Part Number MINO-03671X00039	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9636S-24-S16-12	Product Weight 0.45 lbs

Product Questions & Answers 2

Product Questions & Answers

Hey, will this here adapter work to connect a metric DIN tube to a NPTF female end?

Question by: Lyle L on Feb 20, 2026, 11:21 AM

Yes sir, this adapter is made to connect a M24 x 1.5 male DIN tube to a 3/4 - 14 NPTF female end.

Answer by: Customer Support on Feb 22, 2026, 6:05 AM

got a male M24 x 1.5 DIN tube end on one side and need to go into 3/4 - 14 NPTF female, is that what this adapter is for?

Question by: Sheila B on Jan 12, 2026, 7:21 AM

For tying those two standards together, it is a straight steel adapter with a sealed M24 x 1.5 male DIN 2353 tube connection on one end (S16) and a 3/4 - 14 NPTF female pipe thread on the other.

Answer by: Customer Support on Jan 14, 2026, 6:23 AM
