Male Din (Sealed) X Female Npt 9635S-30-L22-12

Specifications

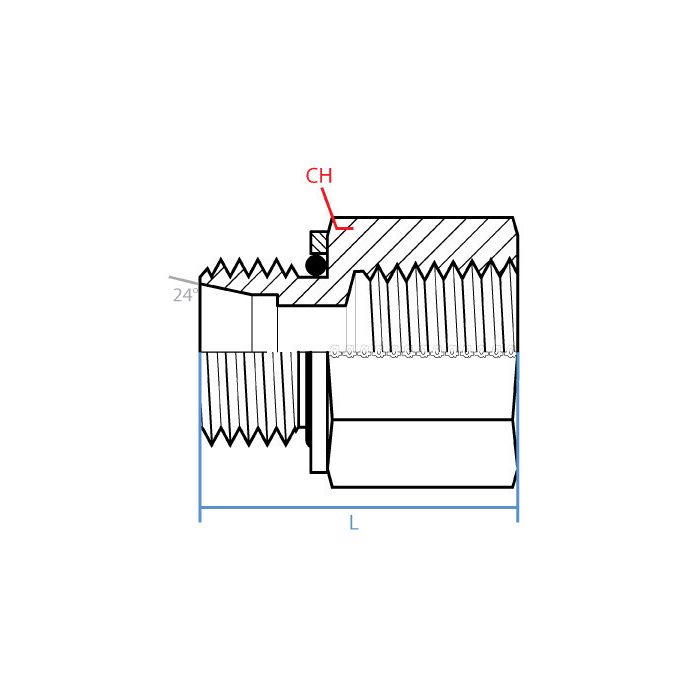

CH Width 38mm	L Length 43.1mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M30 X 2.0	Side 1 Gender M	Side 1 Size L22	Side 1 Type Din Tube	Side 2 Callout 3/4 - 14 NPTF	Side 2 Gender F	Side 2 Size 3/4"	Side 2 Type Npt	Alternate Part Numbers Alternate Part Number MI-04729339, Alternate Part Number MINO-03671X00043	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9635S-30-L22-12	Product Weight 0.42 lbs

Product Questions & Answers 3

Product Questions & Answers

What size wrench do I need for that M30 side? Just wanna make sure I got the right tool before I start.

Question by: Rusty B on Sep 16, 2025, 8:05 PM

You'll need a 38mm wrench for the M30 side of this fitting.

Answer by: Customer Support on Sep 18, 2025, 10:38 AM

Got a hydraulic line running M30 x 2.0 metric DIN tube on one end and need to tie into a 3/4 inch NPT female port, this the right adapter for that?

Question by: Joyce H on Jul 11, 2025, 12:07 PM

For that exact crossover, yes. The male end on this fitting is an M30 x 2.0 DIN 2353 L series sealed connection, and the female end is a 3/4-14 NPTF thread. If your tube side is L22 and your port is 3/4 inch NPT, this adapter bridges that transition in a straight configuration without any added components in between.

Answer by: Customer Support on Jul 12, 2025, 5:29 PM

got a metric DIN tube nut that’s M30 x 2.0, L22. is this the right adapter to get over to a 3/4 npt port?

Question by: Earl H on Jun 9, 2025, 11:43 AM

Made for metric to pipe conversions, this adapter has a male DIN 2353 sealed end with an M30 x 2.0 thread and L22 size on one side, and a female 3/4 - 14 NPTF connection on the other.

Answer by: Customer Support on Jun 11, 2025, 6:56 AM
