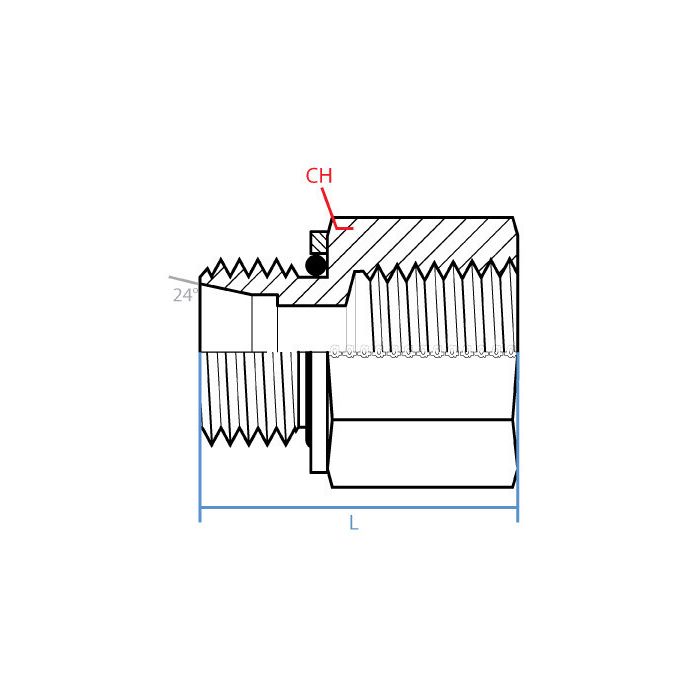

Male Din (Sealed) X Female Npt

CH Width 36mm	L Length 46.2mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M26 X 1.5	Side 1 Gender M	Side 1 Size L18	Side 1 Type Din Tube	Side 2 Callout 3/4 - 14 NPTF	Side 2 Gender F	Side 2 Size 3/4"	Side 2 Type Npt	Alternate Part Numbers Alternate Part Number MI-08022609, Alternate Part Number MINO-03671X00417	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9635S-26-L18-12	Product Weight 0.44 lbs

Product Questions & Answers 1

Product Questions & Answers

got a metric DIN line with M26 x 1.5 on it and need to tie into 3/4 NPTF, is this the right adapter?

Question by: Marvin Y on Jul 17, 2025, 8:09 AM

For a straight metric to pipe connection, it matches an M26 x 1.5 male DIN tube end on one side and a 3/4 - 14 NPTF female port on the other, so it is meant for exactly that transition.

Answer by: Customer Support on Jul 19, 2025, 7:59 AM
