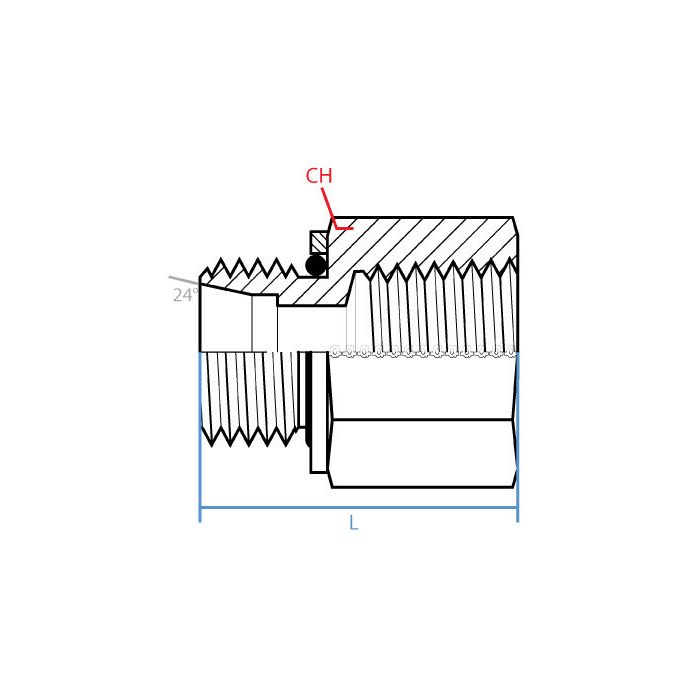

Male Din (Sealed) X Female Npt

CH Width
36mm
L Length
46.4mm
Adaptall Material
Steel
Adaptall Shape
Straight
Side 1 Callout
M22 X 1.5
Side 1 Gender
M
Side 1 Size
L15
Side 1 Type
Din Tube
Side 2 Callout
3/4 - 14 NPTF
Side 2 Gender
F
Side 2 Size
3/4"
Side 2 Type
Npt
Alternate Part Numbers
Alternate Part Number MI-06760058, Alternate Part Number MINO-03671X20011
Brand
Adaptall America
Brand
Adaptall
Pack Size
1.00
UOM
EA
Supplier Part Number
9635S-22-L15-12
Product Weight
0.44 lbs

Product Questions & Answers

trying to hook a metric DIN line up to a 3/4 NPT port, is this the right adapter for that?
Question by: Brett R on Aug 18, 2025, 2:50 PM
For a metric to pipe transition, it goes from an M22 x 1.5 male DIN tube connection on one end to a 3/4 - 14 NPTF female thread on the other, in a straight steel body.
Answer by: Customer Support on Aug 20, 2025, 11:16 AM
Got a machine running 3/4 inch NPT ports and the hydraulic line coming off it has metric DIN fittings on it, this adapter gonna bridge that gap without needing a bunch of extra pieces?
Question by: Daryl W on Apr 22, 2025, 12:40 PM
That's exactly the situation this fitting handles. One end is M22 x 1.5 male DIN tube thread, the other is 3/4-14 NPTF female pipe thread, so it connects a metric DIN line directly to a standard NPT port in one piece. No additional adapters or reducers needed for that specific transition. The DIN end is sealed, which means it uses the compression-style DIN 2353 L series connection rather than relying on thread sealant alone to hold pressure at that joint. Steel construction throughout, straight profile, and it's made by Adaptall, so the fit and finish are consistent with their standard line of fittings.
Answer by: Customer Support on Apr 23, 2025, 12:45 PM
What kind of pressures can this handle? I'm hooking it up to a hydraulic system on my tractor.
Question by: Rhonda R on Aug 30, 2025, 12:44 PM
This adapter isn't rated for specific pressure levels in the provided information, so I wouldn't be able to tell you for sure if it's right for hydraulic use on a tractor.
Answer by: Customer Support on Aug 31, 2025, 2:54 PM
