Male Din (Sealed) X Female Npt 9635S-22-L15-08

Specifications

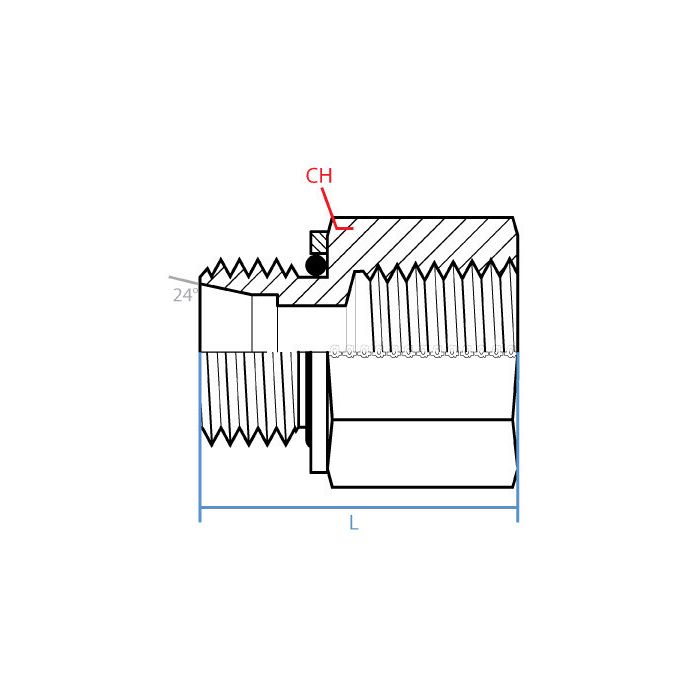

CH Width 27mm	L Length 41.3mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M22 X 1.5	Side 1 Gender M	Side 1 Size L15	Side 1 Type Din Tube	Side 2 Callout 1/2 - 14 NPTF	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Npt	Alternate Part Numbers Alternate Part Number MI-06186896, Alternate Part Number MINO-03671X01443	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9635S-22-L15-08	Product Weight 0.22 lbs

Product Questions & Answers 3

Product Questions & Answers

Reckon this would hold up okay in a hydraulic setup on farm equipment?

Question by: Ronnie W on Dec 27, 2025, 4:08 PM

Designed for industrial applications, this adapter is made from steel, which should offer good durability in demanding settings like those found in farm equipment.

Answer by: Customer Support on Dec 29, 2025, 7:07 AM

adapter's only 41mm long, will that be enough to get a solid connection between the DIN tube side and the NPTF port without any wobble or leakage risk?

Question by: Jerry C on Jun 21, 2025, 8:48 PM

At 41.3mm total length, there's enough body to seat both ends properly. The M22 x 1.5 DIN tube side is sealed by design, which takes care of a big part of the leak concern right there. The 1/2"-14 NPTF thread on the other end uses a dryseal thread form that pulls tight on the threads themselves rather than relying solely on a separate seal. Between those two connection styles, you get a pretty secure joint without needing extra length to compensate.

Answer by: Customer Support on Jun 23, 2025, 6:27 AM

trying to hook a metric DIN tube line to a 1/2 NPT port, is this the right adapter?

Question by: Connie T on Nov 21, 2025, 12:06 PM

For that kind of mix-and-match connection, this adapter is set up with a male M22 x 1.5 DIN 2353 L15 tube end on one side and a female 1/2 inch 14 NPTF port connection on the other, in a straight steel body.

Answer by: Customer Support on Nov 23, 2025, 6:18 AM
