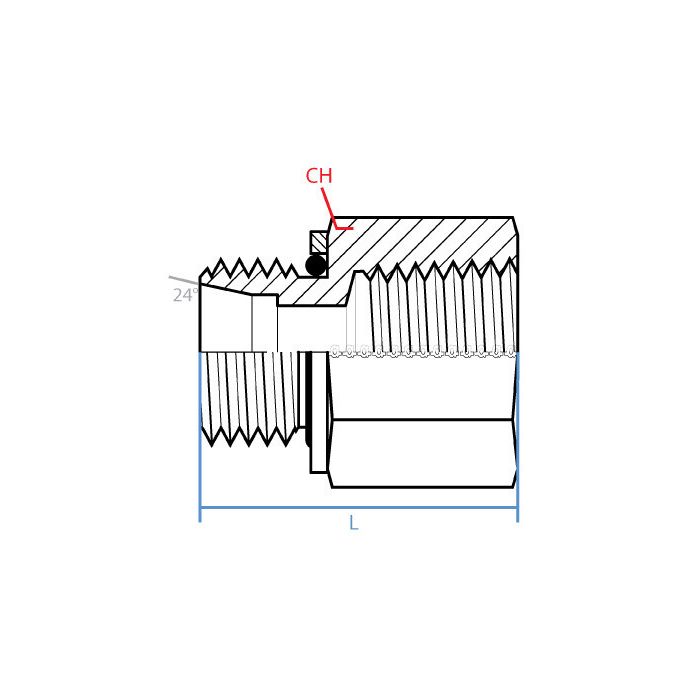

Male Din (Sealed) X Female Npt

CH Width 27mm	L Length 40.6mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M18 X 1.5	Side 1 Gender M	Side 1 Size L12	Side 1 Type Din Tube	Side 2 Callout 1/2 - 14 NPTF	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Npt	Alternate Part Numbers Alternate Part Number MI-05816348, Alternate Part Number MINO-03671X45213	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9635S-18-L12-08	Product Weight 0.22 lbs

Product Questions & Answers 2

Product Questions & Answers

got a fitting on a hydraulic line that's M18 x 1.5 male DIN tube side and I need to tie into a 1/2 inch NPT female port. this the right one?

Question by: Ricky J on Mar 16, 2026, 10:04 AM

That's exactly the crossover this fitting handles. The male side is M18 x 1.5 DIN tube, and the female end is 1/2-14 NPTF, so it bridges those two thread standards in a straight configuration. Steel construction, 40.6mm in length, and 27mm across the wrench flats. Straight shot, no angle, no offset.

Answer by: Customer Support on Mar 17, 2026, 10:13 AM

Will this here adapter fit up with my existing setup?

Question by: Howard M on Mar 1, 2026, 11:35 AM

This adapter is designed with an M18 x 1.5 male Din tube connection on one side and a 1/2 - 14 NPTF female connection on the other, so compatibility depends on those specifications.

Answer by: Customer Support on Mar 2, 2026, 6:28 PM
