Male Din (Sealed) X Female Npt

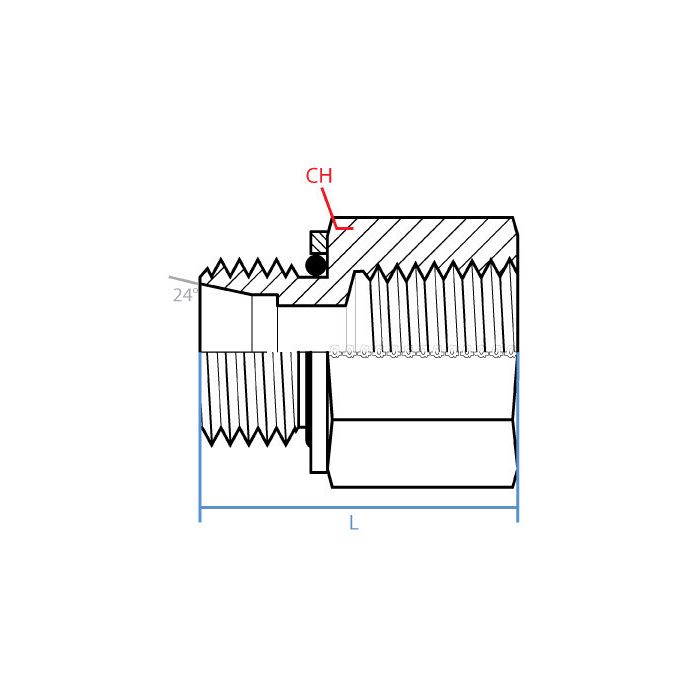

CH Width 24mm	L Length 36.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M18 X 1.5	Side 1 Gender M	Side 1 Size L12	Side 1 Type Din Tube	Side 2 Callout 1/4 - 18 NPTF	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Npt	Alternate Part Numbers Alternate Part Number MI-06495307, Alternate Part Number MINO-03671X94145	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9635S-18-L12-04	Product Weight 0.18 lbs

Product Questions & Answers 1

Product Questions & Answers

trying to hook a metric DIN tube line to a 1/4 NPTF port, is this the right adapter?

Question by: Denise P on Jul 15, 2025, 7:56 PM

For that kind of mix-and-match connection, it’s a straight steel adapter with an M18 x 1.5 DIN tube end (L12) on one side and a 1/4 - 18 NPTF female end on the other, so it’s meant to bridge metric DIN tube to 1/4 NPTF.

Answer by: Customer Support on Jul 17, 2025, 7:44 PM
