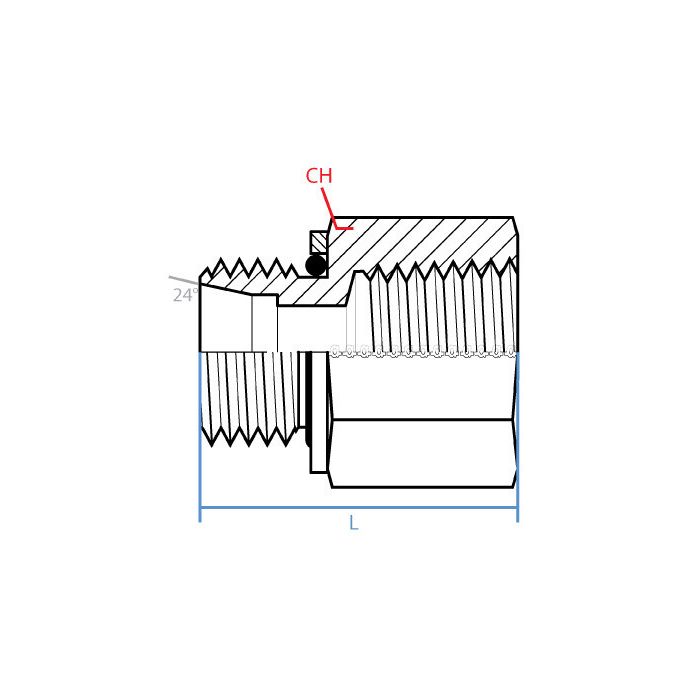

Male Din (Sealed) X Female Npt

Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M16 X 1.5	Side 1 Gender M	Side 1 Size L10	Side 1 Type Din Tube	Side 2 Callout 1/2 - 14 NPTF	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Npt	Alternate Part Numbers Alternate Part Number 9235-16-08	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9635S-16-L10-08	Product Weight 0.20 lbs

Product Questions & Answers 2

Product Questions & Answers

got a Din tube line running M16 x 1.5 and need to tie into a 1/2 inch NPT port, this the right adapter for that?

Question by: Melvin Y on Nov 3, 2025, 2:20 PM

That's what this one's built for. The male end is M16 x 1.5 Din tube and the female end is 1/2-14 NPTF, so you're connecting straight into a standard 1/2 inch NPT port without any reducers or extra fittings in between. Steel construction, straight body, no frills. It'll drop right in where you need it.

Answer by: Customer Support on Nov 4, 2025, 9:14 PM

Will this here fitting work to hook up a DIN tube to a standard NPT pipe?

Question by: Wes B on May 20, 2025, 9:11 PM

Yes, this adapter is designed to connect a DIN tube system to an NPT system. It features an M16 X 1.5 male DIN tube end and a 1/2 - 14 NPTF female NPT end.

Answer by: Customer Support on May 22, 2025, 3:25 PM
