Male Din (Sealed) X Female Npt

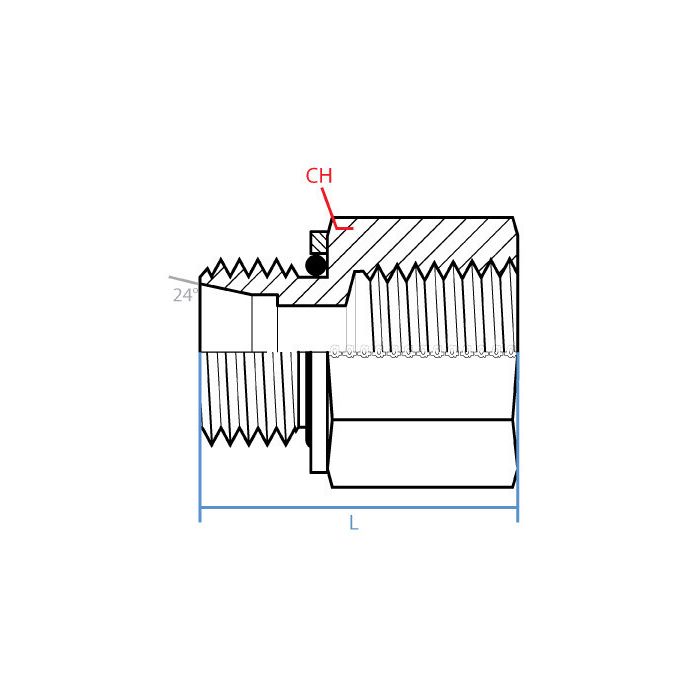

CH Width 22mm	L Length 38.1mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M16 X 1.5	Side 1 Gender M	Side 1 Size L10	Side 1 Type Din Tube	Side 2 Callout 3/8 - 18 NPTF	Side 2 Gender F	Side 2 Size 3/8"	Side 2 Type Npt	Alternate Part Numbers Alternate Part Number MI-06116027, Alternate Part Number MINO-03671F18169	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9635S-16-L10-06	Product Weight 0.15 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a metric DIN tube line I'm tryin to tie into a 3/8 NPT female port on a manifold block. This the right adapter for that?

Question by: Sherry M on Oct 19, 2025, 6:12 AM

That's what this one's built for. Side 1 is an M16 x 1.5 male DIN tube fitting in the L10 series, and side 2 is a 3/8-18 NPTF female. So if your tube line is metric DIN 2353 L series and your manifold port is 3/8 NPT female, this adapter bridges those two without any extra fittings in between.

Answer by: Customer Support on Oct 21, 2025, 7:00 AM

Will this here fitting work to connect a metric tube to a standard NPT pipe?

Question by: Melvin W on Dec 16, 2025, 2:29 PM

Yes, this Adaptall adapter is designed to connect a M16 x 1.5 male DIN tube to a 3/8 - 18 NPTF female pipe fitting.

Answer by: Customer Support on Dec 17, 2025, 3:34 PM
