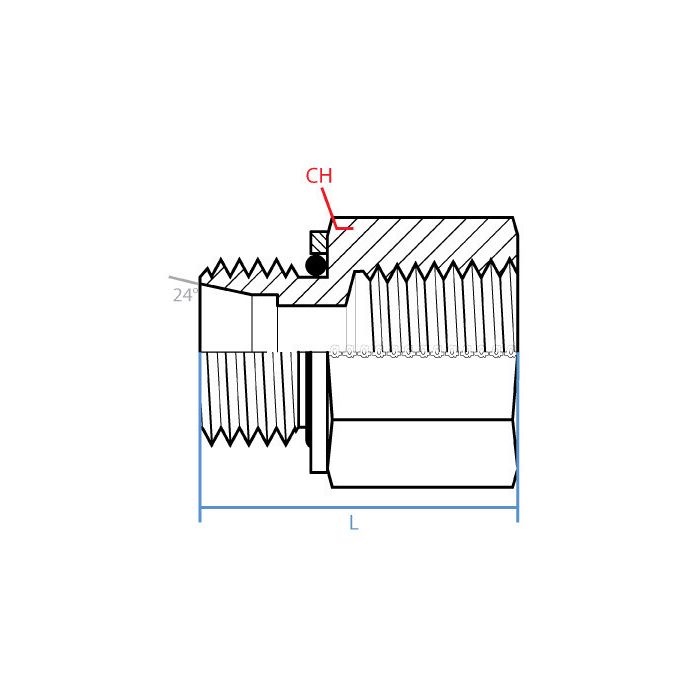

Male Din (Sealed) X Female Npt 9635S-14-L08-06

Specifications

Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size L08	Side 1 Type Din Tube	Side 2 Callout 3/8 - 18 NPTF	Side 2 Gender F	Side 2 Size 3/8"	Side 2 Type Npt	Alternate Part Numbers Alternate Part Number MI-06283186, Alternate Part Number MINO-03671X00188	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9635S-14-L08-06	Product Weight 0.10 lbs

Product Questions & Answers 3

Product Questions & Answers

got a hose with 3/8-18 nptf female and need to go over to a DIN tube end, is this the right adapter?

Question by: Hank R on May 10, 2025, 11:30 AM

For that kind of hookup, it matches a female 3/8 inch 3/8-18 NPTF on one side and a male DIN tube end on the other. The DIN side is M14 x 1.5 and the fitting is a straight steel adapter.

Answer by: Customer Support on May 12, 2025, 6:52 AM

what's the thread size on the NPT end of this fitting, and is it a standard pipe thread i can hook straight into my existing lines?

Question by: Travis G on Mar 27, 2026, 7:24 PM

The female NPT end runs a 3/8 inch size with a 3/8-18 NPTF thread pattern. That's a pretty common size in hydraulic and fluid line work, so it'll mate up with standard 3/8 male NPT fittings without any adapter gymnastics. Just make sure your mating fitting is also NPTF or NPT compatible and you're good to go.

Answer by: Customer Support on Mar 29, 2026, 2:44 PM

Will this fit right on my setup, which uses a 3/8 NPT female end? And the other end is Din M14?

Question by: Lance C on Nov 6, 2025, 11:04 AM

This Adaptall fitting has a female NPT end sized at 3/8" (3/8 - 18 NPTF) to match your setup. The other side is a male Din tube with an M14 x 1.5 size. It's made to connect those two different connection types.

Answer by: Customer Support on Nov 8, 2025, 6:33 AM
