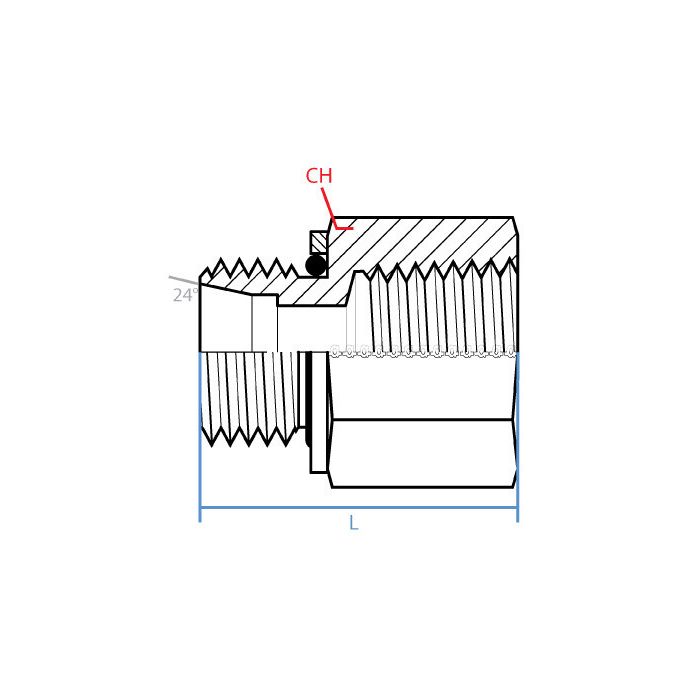

Male Din (Sealed) X Female Npt

CH Width 19mm	L Length 35.1mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size L08	Side 1 Type Din Tube	Side 2 Callout 1/4 - 18 NPTF	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Npt	Alternate Part Numbers Alternate Part Number 9235-14-04, Alternate Part Number MI-05669111, Alternate Part Number MINO-03671F17265	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9635S-14-L08-04	Product Weight 0.11 lbs

Product Questions & Answers 2

Product Questions & Answers

What size wrench do I need for this thing?

Question by: Travis E on May 8, 2025, 9:48 PM

You'll want a 19mm wrench to tighten this adapter down properly.

Answer by: Customer Support on May 10, 2025, 6:30 AM

trying to swap a line over, is this the straight adapter that goes from M14 x 1.5 DIN (L08) to a 1/4-18 NPTF female?

Question by: Judy S on Sep 28, 2025, 12:48 PM

It is a straight steel adapter with a male M14 x 1.5 DIN 2353 L (L08) tube fitting on one end and a female 1/4 - 18 NPTF port on the other, so it matches that DIN-to-NPTF connection.

Answer by: Customer Support on Sep 30, 2025, 6:30 AM
