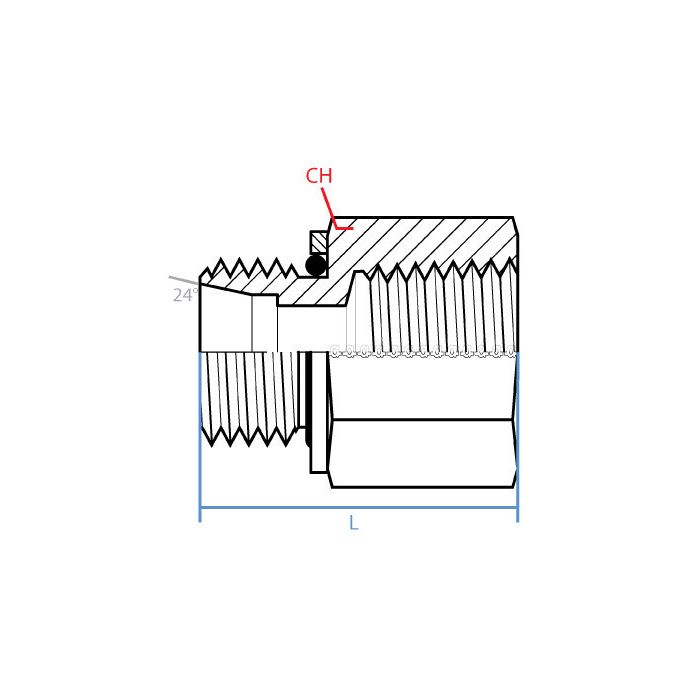

Male Din (Sealed) X Female Npt

CH Width 22mm	L Length 38.3mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M12 X 1.5	Side 1 Gender M	Side 1 Size L06	Side 1 Type Din Tube	Side 2 Callout 3/8 - 18 NPTF	Side 2 Gender F	Side 2 Size 3/8"	Side 2 Type Npt	Alternate Part Numbers Alternate Part Number MI-04709162, Alternate Part Number MINO-03671F14943	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9635S-12-L06-06	Product Weight 0.26 lbs

Product Questions & Answers 1

Product Questions & Answers

trying to hook a DIN tube line to 3/8 NPTF, is this the right straight adapter?

Question by: Larry B on May 26, 2025, 7:02 AM

For converting between those two connection styles, it matches a Male M12 x 1.5 DIN tube end on one side and a Female 3/8 - 18 NPTF port on the other, in a straight steel connector.

Answer by: Customer Support on May 27, 2025, 8:16 PM
