Fjic X Male Din 2353S 9624-24-S38-52

Specifications

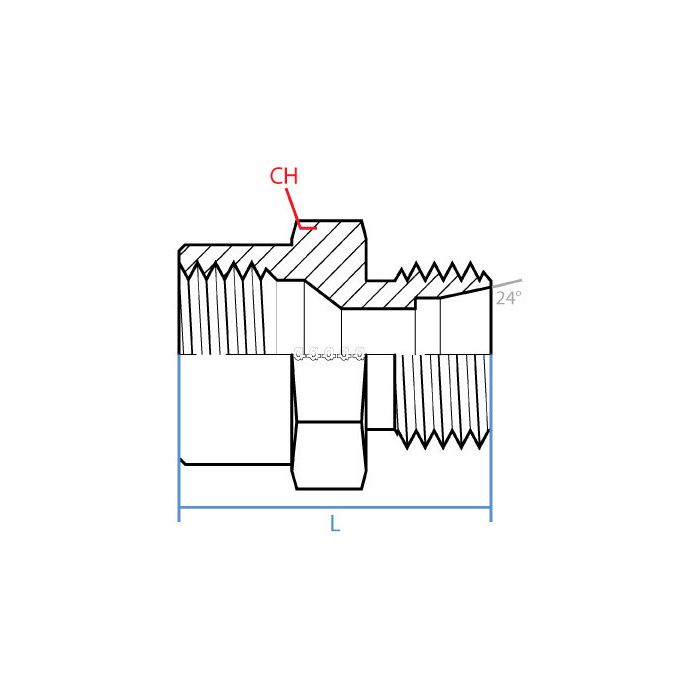

CH Width 57mm	L Length 54mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-7/8 - 12 UN	Side 1 Gender F	Side 1 Size 1-1/2"	Side 1 Type Jic	Side 2 Callout M52 X 2.0	Side 2 Gender M	Side 2 Size S38	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-08738423, Alternate Part Number MINO-03671X97030	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9624-24-S38-52	Product Weight 1.00 lbs

Product Questions & Answers 2

Product Questions & Answers

got a machine running JIC fittings on one end and the other end needs to hook up to a DIN 2353 tube connection, is this the adapter that bridges those two standards in one piece?

Question by: Hubert C on Aug 20, 2025, 11:28 AM

That's what this one's built for. One end is a 1-1/2" female JIC with a 1-7/8-12 UN thread and a 37-degree flare seat. The other end is a male DIN Tube fitting, M52 x 2.0 thread, S38 size, conforming to DIN 2353 compression fitting standards. So if your system has those two connection types that need to meet up, this adapter handles it without needing two separate pieces or a union in between.

Answer by: Customer Support on Aug 22, 2025, 6:44 AM

Will this thing hold up okay in a hydraulic setup that runs pretty hot, or is it more for standard temps?

Question by: Duane R on Aug 18, 2025, 8:51 PM

The steel construction of this Adaptall fitting is designed to withstand demanding industrial hydraulic environments, so it should be suitable for higher temperature applications within the expected range for hydraulic systems.

Answer by: Customer Support on Aug 20, 2025, 6:15 AM
