Fjic X Male Din 2353L

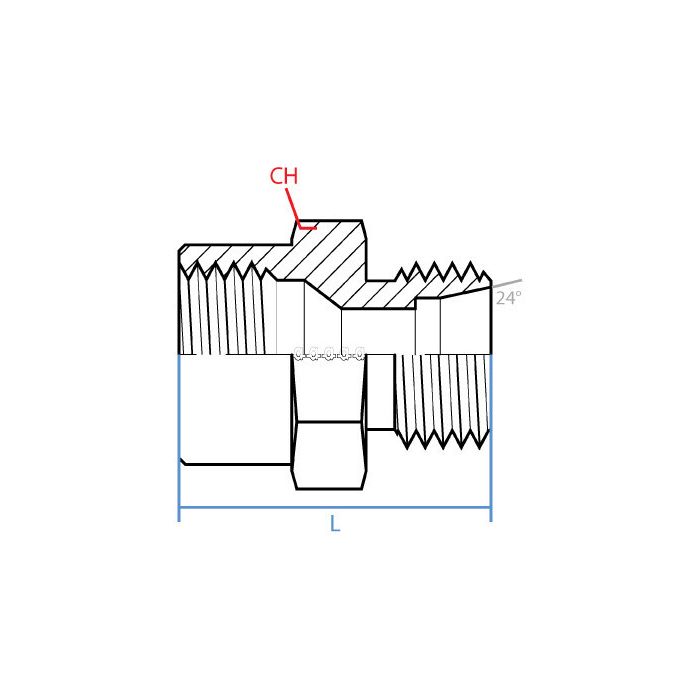

CH Width 57mm	L Length 54.4mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-7/8 - 12 UN	Side 1 Gender F	Side 1 Size 1-1/2"	Side 1 Type Jic	Side 2 Callout M52 X 2.0	Side 2 Gender M	Side 2 Size L42	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9624-24-L42-52	Product Weight 0.98 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a 1-1/2" JIC female line I need to tie into a DIN fitting setup, this the right adapter to make that happen?

Question by: Johnny G on Jan 23, 2026, 10:43 AM

That's exactly the use case this part covers. One end is a female 1-1/2" JIC connection with a 1-7/8-12 UN thread, and the other end is a male DIN tube fitting with an M52 x 2.0 thread and an L42 size designation. Straight body, steel construction, so it's a solid bridge between those two connection standards without needing additional adapters in between.

Answer by: Customer Support on Jan 25, 2026, 6:53 AM

trying to swap a hose end over, is this the straight adapter that goes from a 1-1/2 female JIC to a male DIN tube M52 x 2.0 (L42)

Question by: Connie W on Jun 11, 2025, 7:50 AM

For matching those two ends up, it is a straight steel adapter with a female JIC on side 1 sized 1-1/2 inch with a 1-7/8 - 12 UN callout, and a male DIN tube on side 2 with an M52 x 2.0 callout in size L42.

Answer by: Customer Support on Jun 12, 2025, 9:52 AM
