Fjic X Male Din 2353L 9624-24-L35-45

Specifications

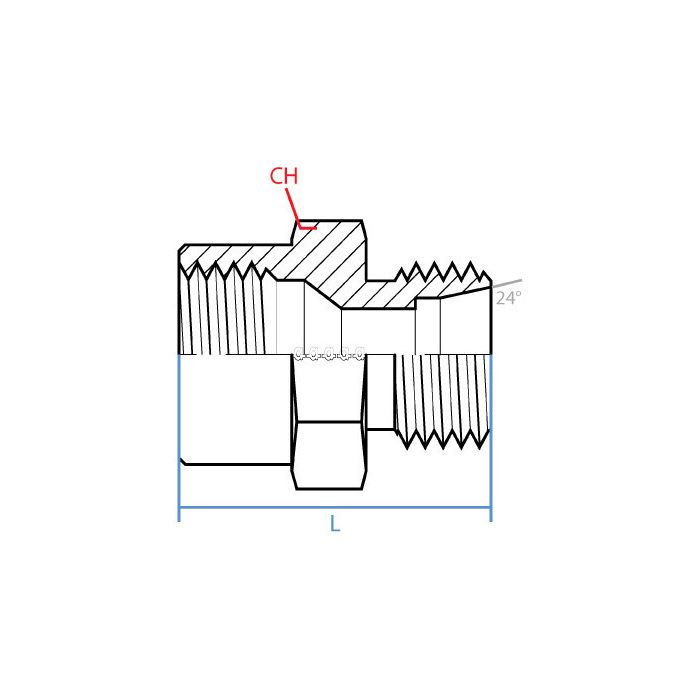

CH Width 57mm	L Length 51.7mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-7/8 - 12 UN	Side 1 Gender F	Side 1 Size 1-1/2"	Side 1 Type Jic	Side 2 Callout M45 X 2.0	Side 2 Gender M	Side 2 Size L35	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9624-24-L35-45	Product Weight 0.86 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a hydraulic line running 1-1/2" JIC on one end that needs to tie into a DIN tube fitting on the other, this the right adapter for that?

Question by: Steve R on Mar 9, 2026, 7:04 PM

For a 1-1/2" female JIC to a male DIN 2353L connection, yeah, that's exactly what this adapter is built for. The JIC side runs a 1-7/8-12 UN thread and the DIN side is M45 x 2.0 at an L35 size. Straight configuration, so no offset to account for during installation. Steel construction throughout.

Answer by: Customer Support on Mar 11, 2026, 2:15 PM

trying to hook a 1-1/2 jic female hose end to a DIN 2353L tube fitting, is this the right adapter?

Question by: Hugh H on Mar 30, 2026, 9:38 AM

For that kind of hookup, this adapter bridges a female JIC side 1 (1-1/2 inch, 1-7/8 - 12 UN) over to a male DIN 2353L side 2 in size L35 with an M45 x 2.0 thread.

Answer by: Customer Support on Apr 1, 2026, 7:27 AM

Hey, will this here adapter work for connecting a 1-1/2" JIC to a DIN tube? I got a L35 size I need to hook up.

Question by: Shane R on Feb 5, 2026, 1:30 PM

Absolutely, this straight steel adapter is designed to connect a 1-1/2" JIC side to a male DIN 2353L side, specifically with that L35 size you mentioned.

Answer by: Customer Support on Feb 7, 2026, 6:07 AM
