Fjic X Male Din 2353S 9624-20-S30-42

Specifications

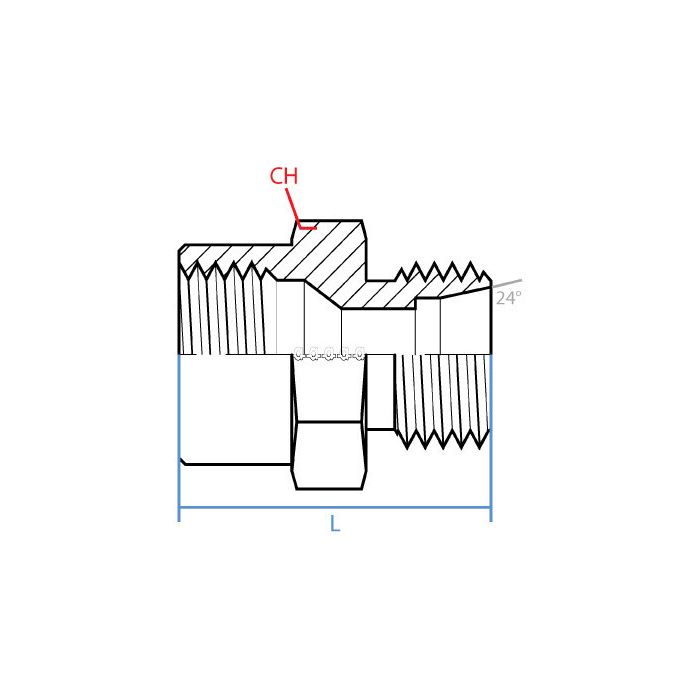

CH Width 51mm	L Length 46.1mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-5/8 - 12 UN	Side 1 Gender F	Side 1 Size 1-1/4"	Side 1 Type Jic	Side 2 Callout M42 X 2.0	Side 2 Gender M	Side 2 Size S30	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-08738422, Alternate Part Number MINO-03671X97029	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9624-20-S30-42	Product Weight 0.62 lbs

Product Questions & Answers 3

Product Questions & Answers

What kinda steel is this thing made from?

Question by: Harvey P on Dec 28, 2025, 8:36 PM

It's crafted from high-grade steel, ensuring it can handle demanding environments and provide long-lasting performance.

Answer by: Customer Support on Dec 30, 2025, 4:09 PM

trying to hook a 1-5/8 12 jic female line to a DIN tube, is this the right adapter?

Question by: Billy H on Aug 22, 2025, 12:26 PM

For that connection style, it matches up as a straight steel adapter with a 1-5/8 - 12 UN female JIC on one side and an M42 x 2.0 male DIN tube connection on the other side (DIN size S30).

Answer by: Customer Support on Aug 23, 2025, 7:56 PM

Got a 1-1/4" JIC female fitting on one end of my hydraulic line and need to tie into a metric DIN tube on the other side. This the right adapter for that?

Question by: Warren B on May 11, 2025, 7:48 PM

For a 1-1/4" JIC female connection paired with an M42 x 2.0 male DIN tube fitting, yes, that's exactly what this adapter does. Side 1 is a 1-5/8-12 UN female JIC and Side 2 is an M42 x 2.0 male DIN tube. It's a straight configuration, so no angle or offset to account for. Steel construction, supplier part number 9624-20-S30-42 if you need to match it against your parts list.

Answer by: Customer Support on May 13, 2025, 12:16 PM
