Fjic X Male Din 2353L 9624-16-L28-36

Specifications

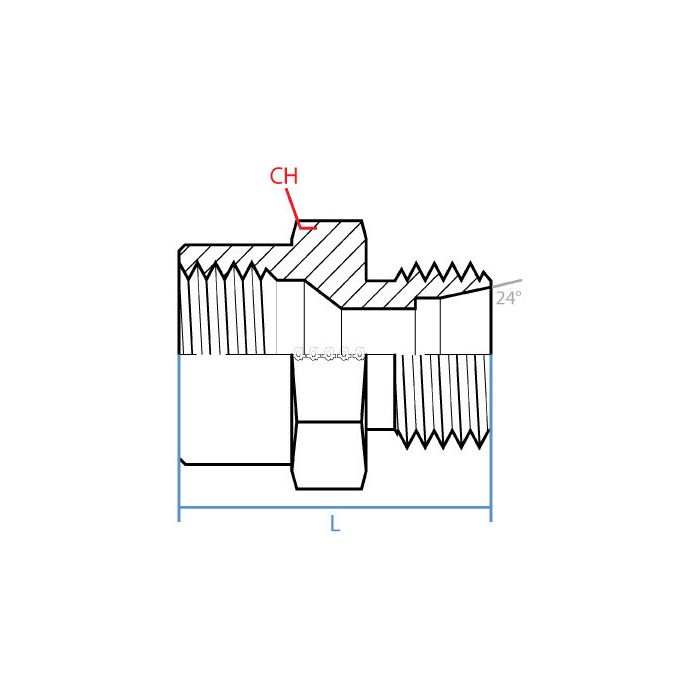

CH Width 41mm	L Length 43.7mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-5/16 - 12 UN	Side 1 Gender F	Side 1 Size 1"	Side 1 Type Jic	Side 2 Callout M36 X 2.0	Side 2 Gender M	Side 2 Size L28	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-08738420, Alternate Part Number MINO-03671X97027	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9624-16-L28-36	Product Weight 0.40 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this fitting work with standard hydraulic setups, or is it for something special?

Question by: Hubert B on Sep 17, 2025, 11:59 AM

It's designed to connect a 1" JIC female end to a DIN tube male end, so as long as your system uses those fittings, it should work just fine.

Answer by: Customer Support on Sep 18, 2025, 6:35 PM

Got a line running M36 x 2.0 DIN tube fittings on one end and need to tie into a JIC system on the other. This fitting do that job?

Question by: Howard H on Apr 30, 2025, 8:36 PM

That's exactly what this one handles. One side is a female 1-inch JIC connection with a 1-5/16-12 UN thread, and the other is a male M36 x 2.0 DIN tube end. Straight body, no adjustable ends, so it's a fixed-orientation connection. If your line dimensions match those specs, it drops right in between those two systems without any adapters stacked on top of it.

Answer by: Customer Support on May 2, 2025, 7:33 AM

trying to match up a fitting i’ve got, is this the one that’s 1 inch female JIC on one end and M36 x 2.0 male DIN tube on the other?

Question by: Ralph T on Aug 11, 2025, 8:57 PM

You’re looking at a straight steel adapter with a female 1 inch JIC end (1-5/16 - 12 UN thread callout) and a male DIN tube end called out as M36 x 2.0 (DIN 2353L, size L28).

Answer by: Customer Support on Aug 13, 2025, 11:34 AM
