Fjic X Male Din 2353S 9624-12-S20-30

Specifications

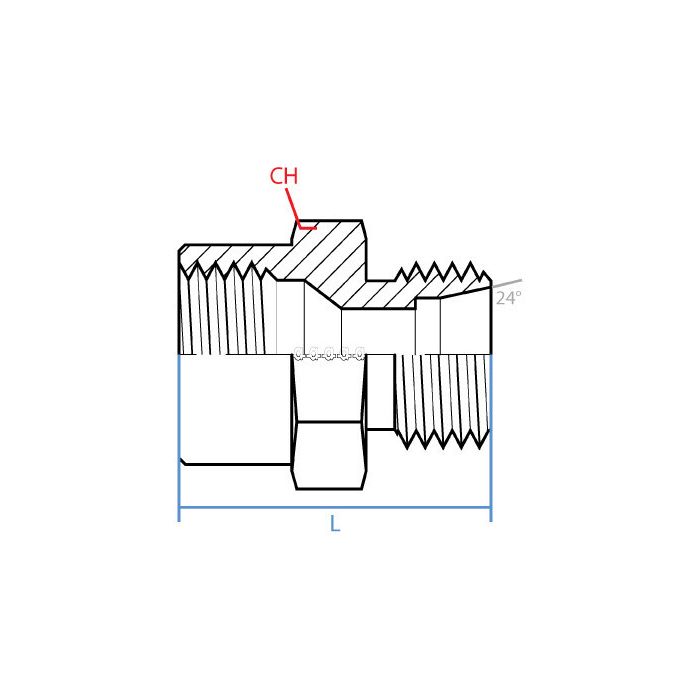

CH Width 35mm	L Length 43.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender F	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout M30 X 2.0	Side 2 Gender M	Side 2 Size S20	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-07850607, Alternate Part Number MINO-03671X11425	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9624-12-S20-30	Product Weight 0.33 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a line running M30 x 2.0 metric tube on one end and need to tie into a JIC system on the other. this the right fitting for that?

Question by: Steve C on Apr 6, 2026, 2:08 PM

Straight shot connection between those two standards is exactly what this fitting handles. One side is a female 1-1/16"-12 UN JIC, sized at 3/4" JIC, and the other is a male M30 x 2.0 DIN tube fitting at S20. Steel construction, straight configuration, no check valve needed and no adjustment required. If your tube and thread specs match up to those, you're good to go.

Answer by: Customer Support on Apr 7, 2026, 5:44 PM

got a hose end that’s 1-1/16-12 JIC female, will this screw right onto it and give me a DIN M30 x 2.0 male on the other side?

Question by: Dean H on Dec 6, 2025, 11:13 AM

Built for that exact conversion, it has a female 1-1/16 inch 12 UN JIC connection on one end and a male M30 x 2.0 DIN tube connection on the other. It is a straight steel connector.

Answer by: Customer Support on Dec 7, 2025, 8:37 PM
