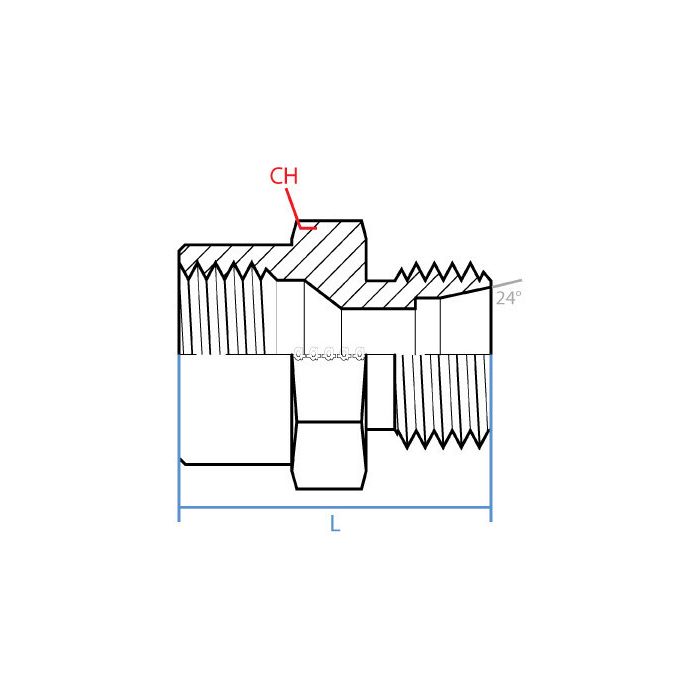

Fjic X Male Din 2353L

CH Width
35mm
L Length
43.4mm
Adaptall Material
Steel
Adaptall Shape
Straight
Side 1 Callout
1-1/16 - 12 UN
Side 1 Gender
F
Side 1 Size
3/4"
Side 1 Type
Jic
Side 2 Callout
M30 X 2.0
Side 2 Gender
M
Side 2 Size
L22
Side 2 Type
Din Tube
Alternate Part Numbers
Alternate Part Number MI-08738419, Alternate Part Number MINO-03671X97026
Brand
Adaptall America
Brand
Adaptall
Pack Size
1.00
UOM
EA
Supplier Part Number
9624-12-L22-30
Product Weight
0.42 lbs

Product Questions & Answers

got a hose end that’s 1-1/16 - 12 UN female JIC. will this screw right onto it and then go to an M30 x 2.0 DIN tube?
Question by: Bobby W on Feb 27, 2026, 8:15 PM
The two ends on this adapter are a 1-1/16 - 12 UN female JIC on one side and an M30 x 2.0 male DIN 2353L tube connection on the other, in a straight steel body.
Answer by: Customer Support on Mar 1, 2026, 6:55 AM
Is this here FJIC fitting made outta steel?
Question by: Jimmy W on Sep 15, 2025, 7:28 PM
Yes, this fitting is made from steel, ensuring durability and reliability for demanding industrial applications.
Answer by: Customer Support on Sep 17, 2025, 6:19 AM
