Fjic X Male Din 2353L

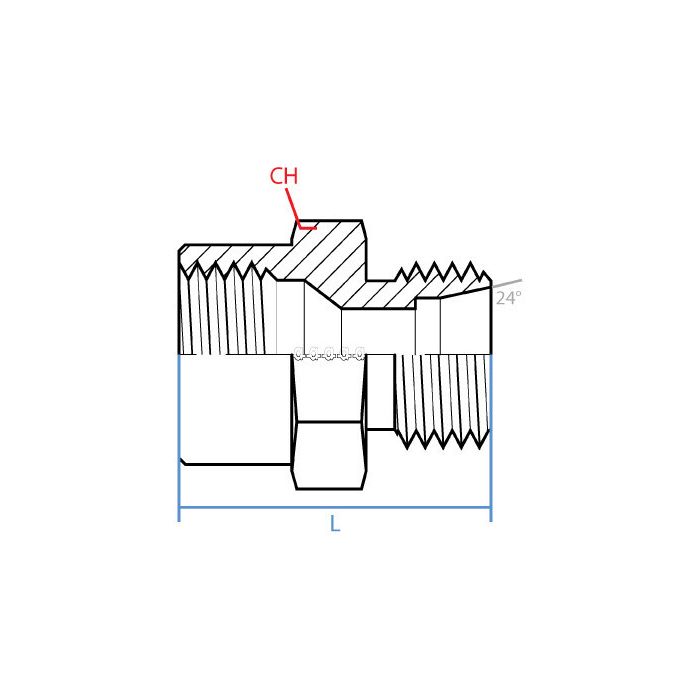

CH Width 32mm	L Length 38mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender F	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout M26 X 1.5	Side 2 Gender M	Side 2 Size L18	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-08738418, Alternate Part Number MINO-03671X97025	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9624-12-L18-26	Product Weight 0.22 lbs

Product Questions & Answers 2

Product Questions & Answers

Just want to make sure, this here adapter will connect a JIC to a DIN tube right?

Question by: Tammy R on Mar 1, 2026, 6:40 PM

Yes indeed. This straight adapter ensures a solid connection between a 1-1/16 - 12 UN female JIC end and an M26 X 1.5 male DIN tube. It's built to handle fluid transfer in industrial setups.

Answer by: Customer Support on Mar 3, 2026, 7:12 AM

What exactly is this adapter connecting on each end, and what size threads are we talking about?

Question by: Earl L on Jun 10, 2025, 4:31 PM

One end is a 3/4 inch female JIC with 1-1/16 - 12 UN threads, and the other end is an M26 x 1.5 male DIN tube fitting. It runs straight through with no angle, so both connections stay in line. The overall length comes in at 38mm with a 32mm wrench flat, which makes it pretty manageable in tighter hydraulic connections setups.

Answer by: Customer Support on Jun 12, 2025, 7:03 AM
