Fjic X Male Din 2353S

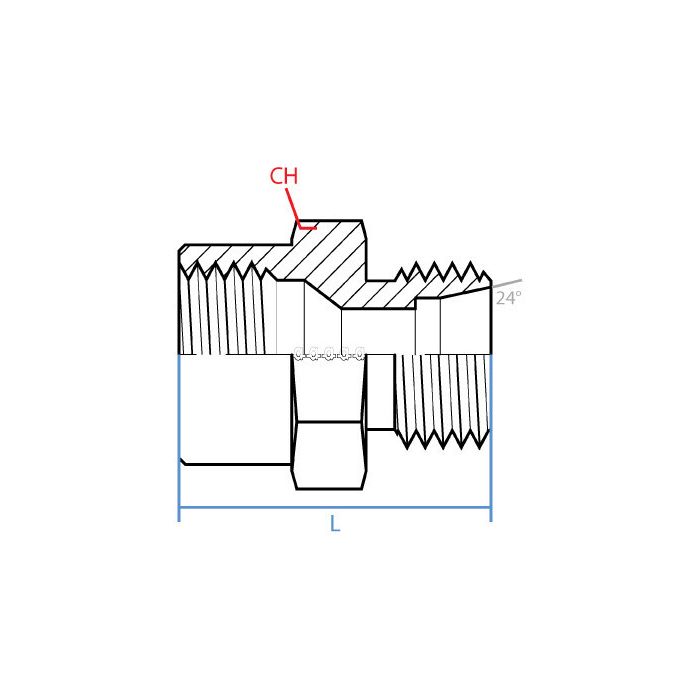

CH Width 27mm	L Length 32mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender F	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout M24 X 1.5	Side 2 Gender M	Side 2 Size S16	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-08738417, Alternate Part Number MINO-03671X97024	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9624-08-S16-24	Product Weight 0.16 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a JIC female end on my line and need to tie into a metric Din tube setup, this the right adapter for that?

Question by: Dwayne C on Sep 28, 2025, 8:05 AM

That's what this fitting handles. One end is a 1/2" JIC female with a 3/4-16 UNF thread, and the other side is a male Din tube end running M24 x 1.5 thread at size S16. Steel construction, straight body, 27mm wrench width and 32mm overall length. If those specs match your line and your Din port, you're looking at the right part.

Answer by: Customer Support on Sep 29, 2025, 9:44 AM
