Fjic X Male Din 2353S 9624-08-S14-22

Specifications

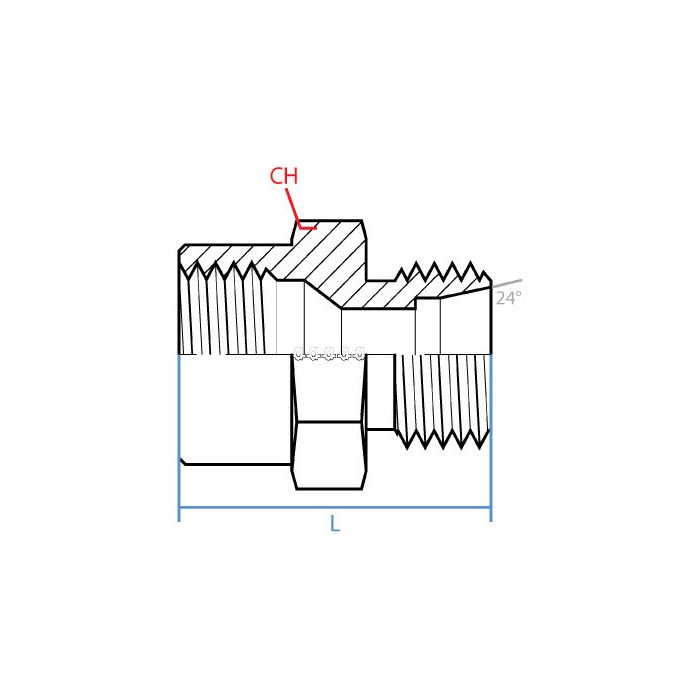

CH Width 27mm	L Length 32.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender F	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size S14	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-06539479, Alternate Part Number MINO-03671X90019	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9624-08-S14-22	Product Weight 0.16 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a metric tube line running M22 x 1.5 on one end and need to tie into a JIC system on the other, this fitting work for that?

Question by: Frank W on Aug 15, 2025, 1:42 PM

Yeah, that's exactly what this adapter is built for. One side is a 1/2" JIC female connection with a 3/4-16 UNF thread, and the other is an M22 x 1.5 male DIN tube fitting. Steel construction, straight profile, 32.5mm long. Connects metric DIN tube systems to 37-degree flare JIC lines without any intermediate adapters.

Answer by: Customer Support on Aug 17, 2025, 7:54 AM

trying to replace a fitting i pulled off, one side is 3/4-16 UNF female jic and the other is m22x1.5 male. is that what this is?

Question by: Lance R on Aug 18, 2025, 11:33 AM

Match-up wise, it’s a straight steel adapter with a 1/2 inch JIC female end that has a 3/4-16 UNF thread, and the other end is an M22 x 1.5 male DIN tube connection listed as S14.

Answer by: Customer Support on Aug 20, 2025, 6:49 AM

Will this fitting work to connect a JIC flared fitting to a DIN tube?

Question by: Norm R on May 5, 2025, 9:24 AM

Designed specifically for that purpose, this Adaptall fitting allows you to connect a 1/2" JIC female to an M22 x 1.5 male DIN tube.

Answer by: Customer Support on May 6, 2025, 4:19 PM
