Fjic X Male Din 2353S

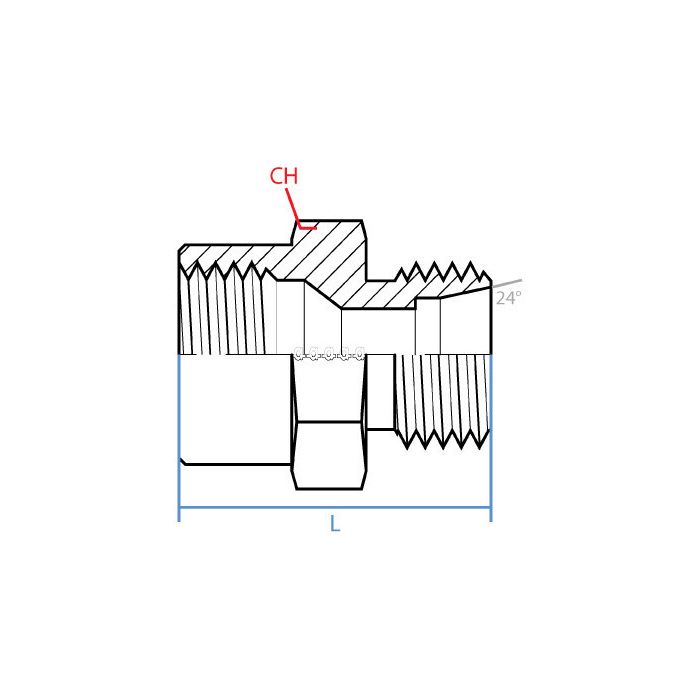

CH Width 27mm	L Length 30mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender F	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout M20 X 1.5	Side 2 Gender M	Side 2 Size S12	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-08738416, Alternate Part Number MINO-03671X97023	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9624-08-S12-20	Product Weight 0.30 lbs

Product Questions & Answers 2

Product Questions & Answers

got a hose end that’s 3/4-16 UNF JIC female, will this mate up to a metric DIN tube on the other side?

Question by: Randy F on Oct 20, 2025, 8:48 AM

For a metric to 37 degree flare hookup, it bridges a 1/2 inch JIC female end with a 3/4 - 16 UNF thread on Side 1 over to an M20 x 1.5 male DIN tube connection on Side 2 (S12).

Answer by: Customer Support on Oct 21, 2025, 7:55 PM

Will this fitting hold up alright in a hydraulic system running at, say, 3000 PSI? Just wanna make sure it can handle the pressure.

Question by: Travis H on Feb 16, 2026, 8:10 PM

Constructed from high-quality steel, this fitting is built for durability and reliability, even in demanding hydraulic environments. While the specific PSI rating isn't provided, the robust steel construction suggests it should be suitable for many standard hydraulic applications.

Answer by: Customer Support on Feb 18, 2026, 1:09 PM
