Fjic X Male Din 2353L

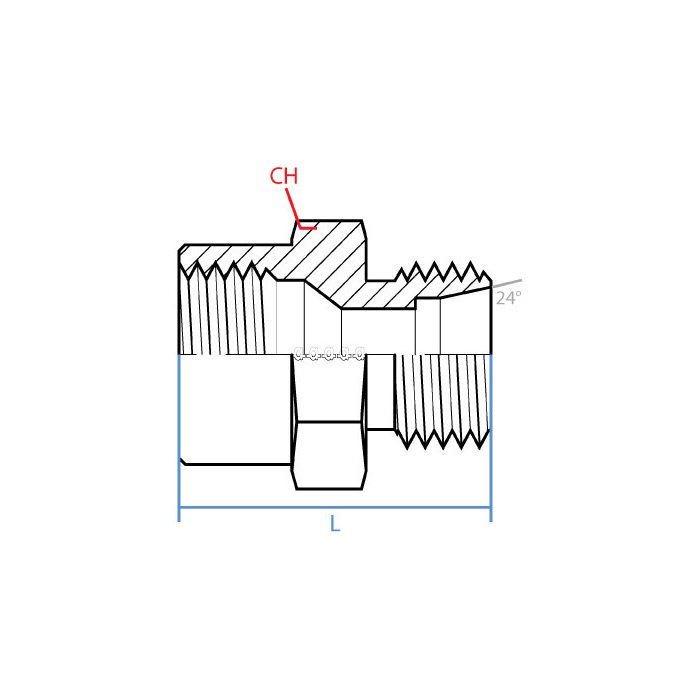

CH Width 27mm	L Length 32.7mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender F	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size L15	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-08738415, Alternate Part Number MINO-03671X97022	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9624-08-L15-22	Product Weight 0.26 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a line running 3/4-16 UNF JIC on one end and need to tie into an M22 x 1.5 DIN tube fitting on the other, this the right adapter for that?

Question by: Connie E on Jul 24, 2025, 8:30 PM

That's what this one's built for. One side is a female 3/4-16 UNF JIC connection and the other is a male M22 x 1.5 DIN tube fitting. Straight configuration, no adjustable components, so it threads up and locks in without any fuss. Steel construction holds up well in working hydraulic environments.

Answer by: Customer Support on Jul 26, 2025, 11:31 AM
