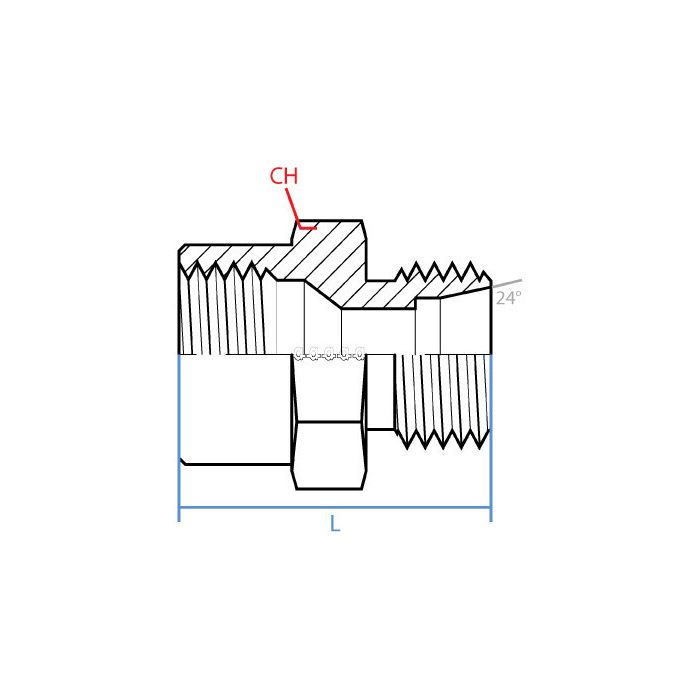

Fjic X Male Din 2353L 9624-08-L12-18

Specifications

CH Width 24mm	L Length 30.1mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender F	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size L12	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-08738414, Alternate Part Number MINO-03671X97021	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9624-08-L12-18	Product Weight 0.10 lbs

Product Questions & Answers 3

Product Questions & Answers

Can this here fitting handle hydraulic fluid without any issues?

Question by: Frank M on Aug 18, 2025, 9:25 PM

It's crafted from robust steel, making it suitable for use with hydraulic fluids in professional systems.

Answer by: Customer Support on Aug 20, 2025, 9:56 AM

got a hose end with 3/4-16 UNF female JIC on it, will this adapter go over to an M18 x 1.5 male DIN tube end?

Question by: Neal R on Jul 6, 2025, 5:47 PM

Built for that exact conversion, it has a 3/4 - 16 UNF female JIC on one side and an M18 x 1.5 male DIN 2353L tube connection on the other, in a straight steel body.

Answer by: Customer Support on Jul 8, 2025, 6:47 AM

Part number on this is 9624-08-L12-18, that the same as MI-08738414 or are those different parts?

Question by: Warren A on Dec 6, 2025, 6:37 PM

Same part, different number systems. MI-08738414 and MINO-03671X97021 are both alternate part numbers that reference the exact same adapter. Suppliers and distributors sometimes catalog it under different codes depending on their system, but you're looking at the same piece either way.

Answer by: Customer Support on Dec 8, 2025, 7:35 AM
