Fjic X Male Din 2353S

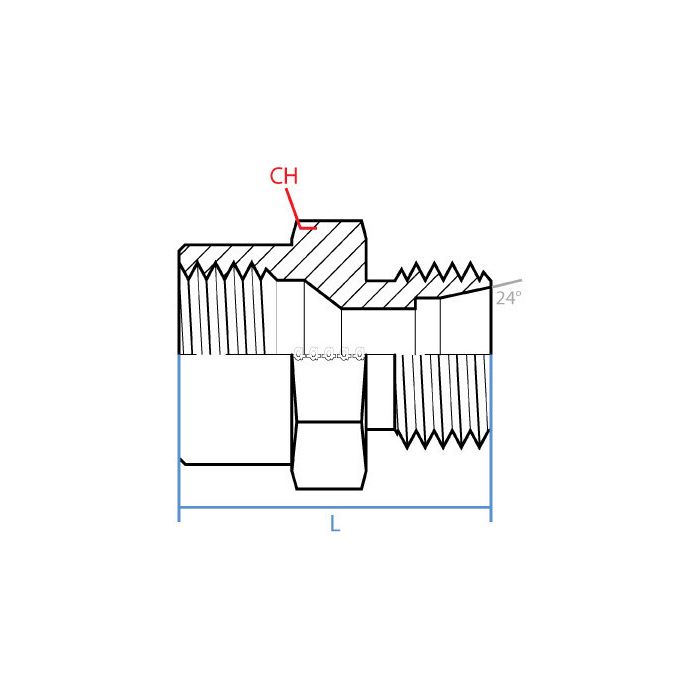

CH Width 22mm	L Length 29.3mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender F	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size S10	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-08738413, Alternate Part Number MINO-03671X97020	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9624-06-S10-18	Product Weight 0.12 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a hydraulic line coming off a metric DIN tube fitting and need to tie into some JIC fittings on the other end. This a straight shot adapter or is there any swivel or rotation to it?

Question by: Sherry H on Apr 2, 2026, 6:17 PM

Straight through, no swivel. The adapter runs from a 3/8" female JIC on one end to a male DIN tube connection on the other, and neither side rotates or adjusts. Both threads are fixed, so your lines need to be aligned before you torque it down. The JIC side runs a 9/16-18 UNF thread, and the DIN side is M18 x 1.5 for S10 metric tube. If your hydraulic connections is already routed and positioned correctly, it drops right in without any fuss.

Answer by: Customer Support on Apr 3, 2026, 9:29 PM
