Fjic X Male Din 2353L 9624-06-L10-16

Specifications

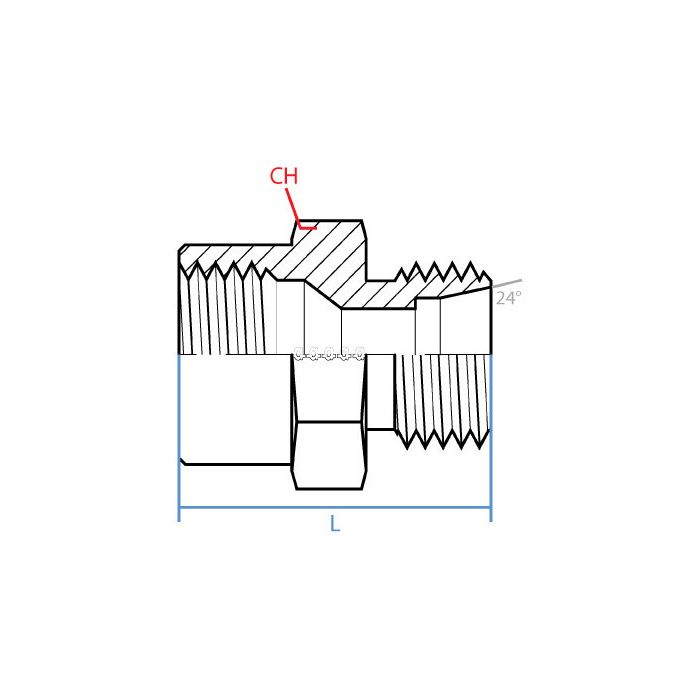

CH Width 20.5mm	L Length 28mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender F	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout M16 X 1.5	Side 2 Gender M	Side 2 Size L10	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-08737634, Alternate Part Number MINO-03671X97018	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9624-06-L10-16	Product Weight 0.08 lbs

Product Questions & Answers 3

Product Questions & Answers

Is this the right fitting to connect a metric tube to a JIC flare?

Question by: Frank S on Sep 18, 2025, 9:46 PM

That's precisely its purpose; it adapts a metric DIN tube to a 37-degree JIC flare fitting.

Answer by: Customer Support on Sep 20, 2025, 8:54 AM

trying to hook a 3/8 jic hose up to a metric din tube end, is this the right adapter?

Question by: Daryl S on Dec 10, 2025, 4:15 PM

For a metric to 37 degree flare hookup, this adapter matches a female JIC 9/16-18 UNF on one side (3/8 size) and a male DIN 2353L tube end on the other side with M16 x 1.5 threads (L10 size).

Answer by: Customer Support on Dec 12, 2025, 10:43 AM

What thread types are on each end of this adapter, and what sizes are we talking?

Question by: Hugh R on Mar 31, 2026, 2:10 PM

One end is a female JIC fitting with a 9/16-18 UNF thread, which corresponds to a 3/8" JIC size. The other end is a male DIN tube fitting with an M16 x 1.5 thread at L10 sizing. So you're bridging a standard 37-degree flare JIC connection on one side to a metric DIN tube connection on the other, all in one straight adapter.

Answer by: Customer Support on Apr 2, 2026, 6:48 AM
