Fjic X Male Din 2353L

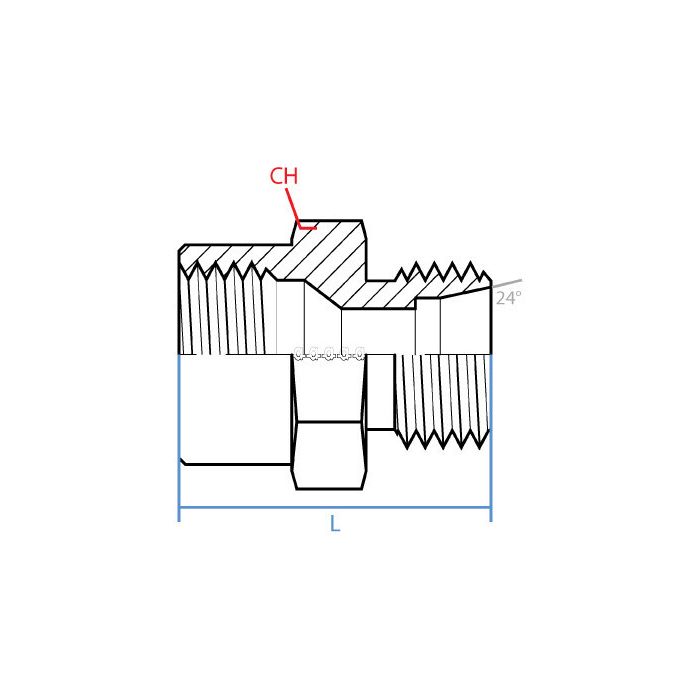

CH Width 19mm	L Length 25.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender F	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout M14 X 1.5	Side 2 Gender M	Side 2 Size L08	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-08736563, Alternate Part Number MINO-03671X97017	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9624-06-L08-14	Product Weight 0.22 lbs

Product Questions & Answers 1

Product Questions & Answers

what's the thread size on the JIC end of this fitting, and does it hook up to standard 37-degree flare hose ends?

Question by: Kent O on Aug 26, 2025, 8:35 AM

The JIC side runs a 9/16-18 UNF female thread, which is the standard size for 3/8" JIC connections. That thread pattern mates with 37-degree flare fittings, so it'll connect to any standard JIC male hose end of the same size without issue.

Answer by: Customer Support on Aug 27, 2025, 2:23 PM
