Fjic X Male Din 2353S

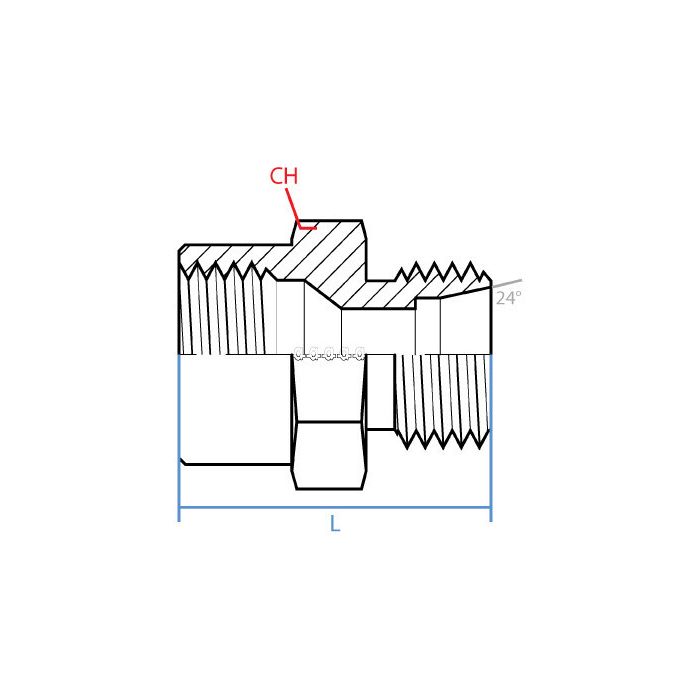

CH Width 17.5mm	L Length 24.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender F	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout M14 X 1.5	Side 2 Gender M	Side 2 Size S06	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-08736562, Alternate Part Number MINO-03671X97016	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9624-04-S06-14	Product Weight 0.07 lbs

Product Questions & Answers

got a hose end that’s 7/16-20 UNF JIC female, will this mate up on that side?

Question by: Frank J on Feb 2, 2026, 6:17 PM

On the JIC side, it is a female 7/16-20 UNF connection listed as 1/4 inch size, so it matches a 7/16-20 JIC male.

Answer by: Customer Support on Feb 4, 2026, 6:33 AM
