Fjic X Male Din 2353L

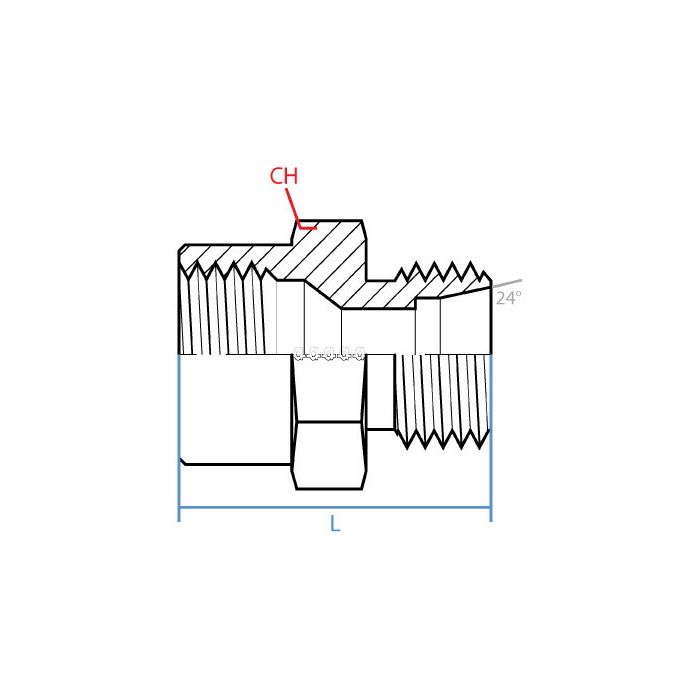

CH Width 17.5mm	L Length 25.1mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender F	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout M12 X 1.5	Side 2 Gender M	Side 2 Size L06	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-08736561, Alternate Part Number MINO-03671X97015	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9624-04-L06-12	Product Weight 0.21 lbs

Product Questions & Answers 1

Product Questions & Answers

What size connections does this adapter actually have on each end? Trying to figure out if it'll work with what I already got on my machine.

Question by: Wes M on Jun 18, 2025, 7:28 AM

One end is a 7/16-20 UNF female JIC, which is a 1/4 inch JIC connection. The other end is an M12 x 1.5 male DIN tube fitting, sized at L06. So if you've got a JIC female port on one side and need to tie into a metric DIN tube fitting on the other, this is the piece that bridges those two together.

Answer by: Customer Support on Jun 19, 2025, 8:55 PM
