Mjic X Male Din 2353S (Sealed) 9606S-24-S38-52

Specifications

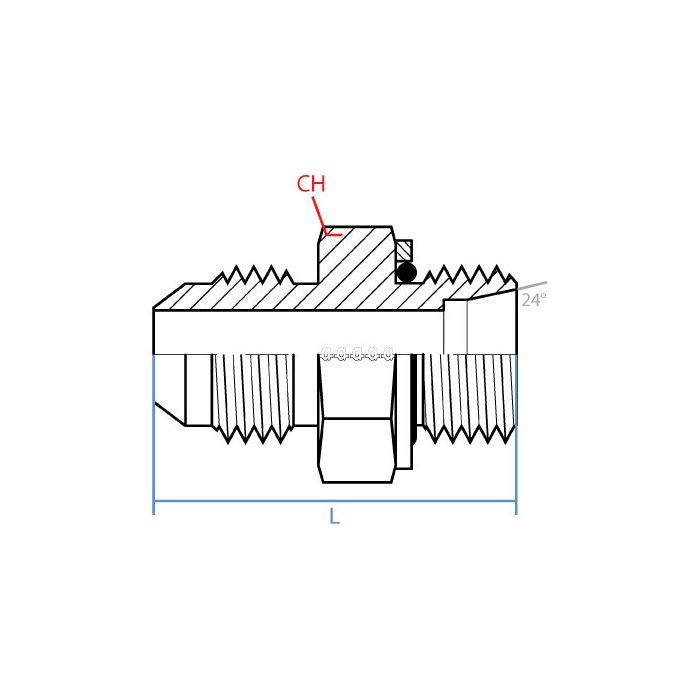

CH Width 60mm	L Length 69mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-7/8 - 12 UN	Side 1 Gender M	Side 1 Size 1-1/2"	Side 1 Type Jic	Side 2 Callout M52 X 2.0	Side 2 Gender M	Side 2 Size S38	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9606S-24-S38-52	Product Weight 0.95 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to hook up a JIC hose end to a DIN tube fitting. what threads are on each side of this adapter?

Question by: Earl H on Mar 23, 2026, 4:15 PM

On the JIC side you get a 1-7/8 - 12 UN male connection, and the other end is an M52 x 2.0 DIN tube male connection (DIN 2353S sealed style).

Answer by: Customer Support on Mar 25, 2026, 2:03 PM

Will this here adapter hold up alright if it’s runnin’ near 5000 PSI, give or take?

Question by: Travis M on Feb 12, 2026, 9:48 PM

Designed to ensure reliable connections in industrial hydraulic systems, this adapter uses robust steel construction for durability in demanding applications. It should handle that pressure, as long as it's within the standard operating conditions for steel hydraulic components.

Answer by: Customer Support on Feb 14, 2026, 4:38 PM

got a 1-1/2 inch JIC line on a hydraulic circuit and need to tie into a DIN tube fitting on the other end, this the right adapter for that?

Question by: Warren A on Oct 28, 2025, 6:19 AM

That's exactly the application this part covers. One end is a 1-7/8-12 UN JIC male, which corresponds to a 1-1/2 inch JIC size, and the other end is an M52 X 2.0 DIN tube male in an S38 size. Both sides are male, so you'd be threading this into female JIC and female DIN ports on your existing components. It's a straight adapter, so no offset or angle to account for during routing.

Answer by: Customer Support on Oct 29, 2025, 4:31 PM
