Mjic X Male Din 2353S (Sealed)

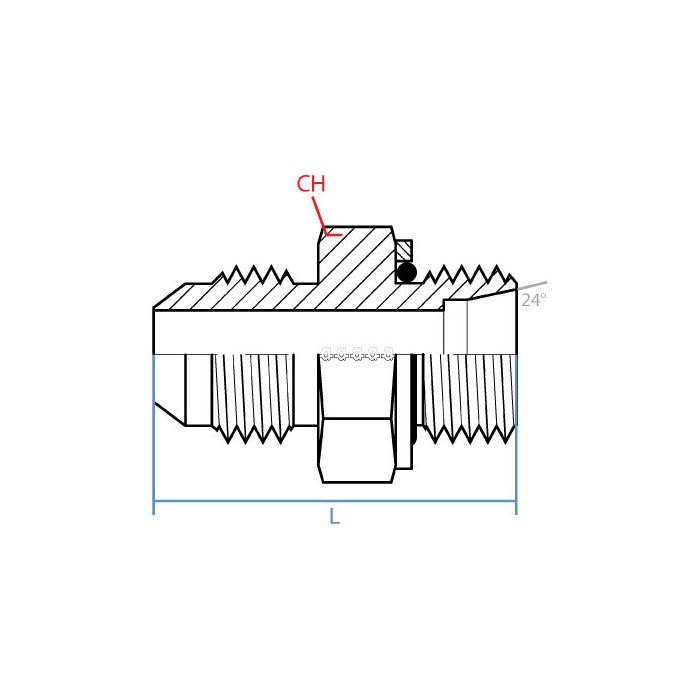

CH Width 50mm	L Length 54.6mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-5/16 - 12 UN	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Jic	Side 2 Callout M42 X 2.0	Side 2 Gender M	Side 2 Size S30	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9606S-16-S30-42	Product Weight 0.72 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a DIN tube connection on a piece of equipment running M42 X 2.0 threads and need to tie into a JIC line on the other end. This the right adapter for that?

Question by: Earl M on Feb 26, 2026, 11:38 AM

That's exactly what this one does. One end is a 1-inch JIC male with a 1-5/16-12 UN thread, and the other is a DIN tube male in S30 size with M42 X 2.0 threads. Both ends are male, so you'd need corresponding female ports or fittings on each side of the connection. It's a straight adapter, so no angle changes in the line.

Answer by: Customer Support on Feb 28, 2026, 6:34 AM
