Mjic X Male Din 2353S (Sealed) 9606S-16-S25-36

Specifications

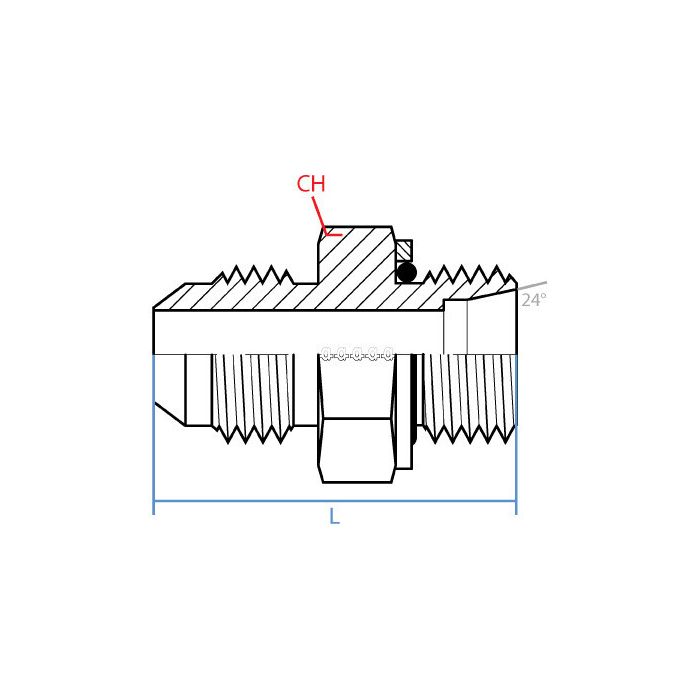

CH Width 41mm	L Length 53.7mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-5/16 - 12 UN	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Jic	Side 2 Callout M36 X 2.0	Side 2 Gender M	Side 2 Size S25	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-07976914, Alternate Part Number MINO-03671X00381	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9606S-16-S25-36	Product Weight 0.51 lbs

Product Questions & Answers 3

Product Questions & Answers

What size JIC and DIN connections does this adapter bridge exactly? Got a line that's been a headache to match up and want to make sure before I order.

Question by: Howard C on Oct 17, 2025, 8:26 AM

One end is a 1-5/16 - 12 UN male JIC, which corresponds to a 1-inch JIC size. The other end is an M36 X 2.0 male DIN tube connection, sized at S25. Both ends are male, so plan your mating fittings accordingly. The adapter runs straight through with no angle or offset, 53.7mm long and 41mm across the wrench flats.

Answer by: Customer Support on Oct 19, 2025, 6:02 AM

Will this here fitting work to connect a JIC to a DIN tube?

Question by: Kirk K on Feb 9, 2026, 7:45 PM

Yes sir, this Adaptall fitting is made to connect a 1-5/16 - 12 UN male JIC fitting to an M36 X 2.0 male DIN tube.

Answer by: Customer Support on Feb 11, 2026, 6:40 AM

got a hose end that’s 1-5/16-12 UN JIC male and I need to land it on an M36 x 2.0 DIN tube port. is this the right adapter?

Question by: Chad C on Jul 22, 2025, 9:41 PM

For that mix of thread types, this adapter matches up a 1-5/16 - 12 UN male JIC on one side to an M36 x 2.0 male DIN 2353S tube end on the other side. It is a straight steel fitting, so it is meant for a direct inline connection.

Answer by: Customer Support on Jul 24, 2025, 6:55 PM
