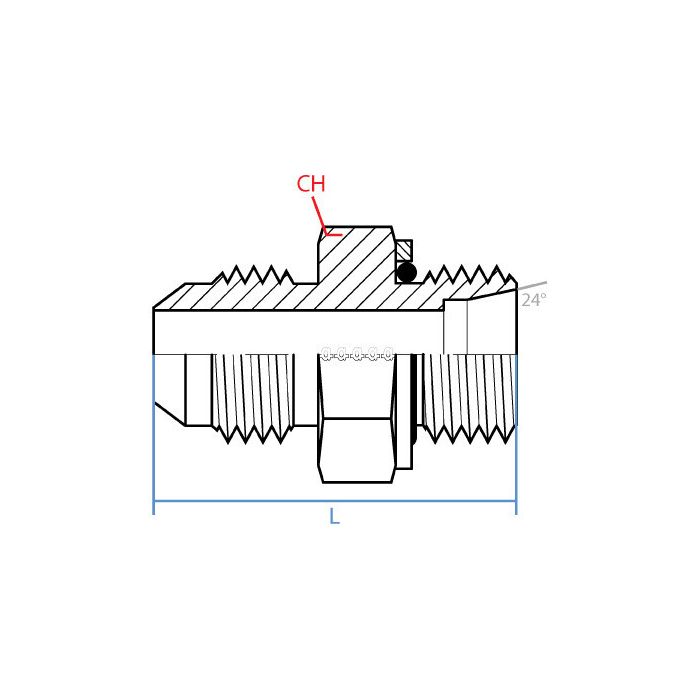

Mjic X Male Din 2353S (Sealed)

CH Width
36mm
L Length
51.3mm
Adaptall Material
Steel
Adaptall Shape
Straight
Side 1 Callout
1-5/16 - 12 UN
Side 1 Gender
M
Side 1 Size
1"
Side 1 Type
Jic
Side 2 Callout
M30 X 2.0
Side 2 Gender
M
Side 2 Size
S20
Side 2 Type
Din Tube
Alternate Part Numbers
Alternate Part Number MI-07976910, Alternate Part Number MINO-03671X00380
Brand
Adaptall America
Brand
Adaptall
Pack Size
1.00
UOM
EA
Supplier Part Number
9606S-16-S20-30
Product Weight
0.44 lbs

Product Questions & Answers

Got a line running M30 x 2.0 metric tube on one end and JIC on the other, this fitting gonna bridge that gap clean?
Question by: Jerry H on Jul 15, 2025, 8:59 AM
Yeah, that's exactly what it's built for. One side is a 1-inch JIC male (1-5/16-12 UN thread) and the other is an M30 x 2.0 male DIN tube connection, so it bridges that metric-to-37-degree flare transition in a single straight fitting. No adapters stacked on adapters, just one solid steel piece handling both ends. The sealed DIN 2353S design keeps the connection tight, which matters when you're pulling it into a working system.
Answer by: Customer Support on Jul 16, 2025, 12:28 PM
Hey, will this here fitting work to connect a 1-inch JIC to an M30 metric tube?
Question by: Ricky M on Mar 28, 2026, 3:10 PM
This Adaptall fitting is designed to do just that - connect a 1-inch JIC fitting to an M30 X 2.0 DIN tube connection. It's a straight fitting, so it'll give you a direct connection.
Answer by: Customer Support on Mar 30, 2026, 8:44 AM
