Mjic X Male Din 2353S (Sealed) 9606S-12-S25-36

Specifications

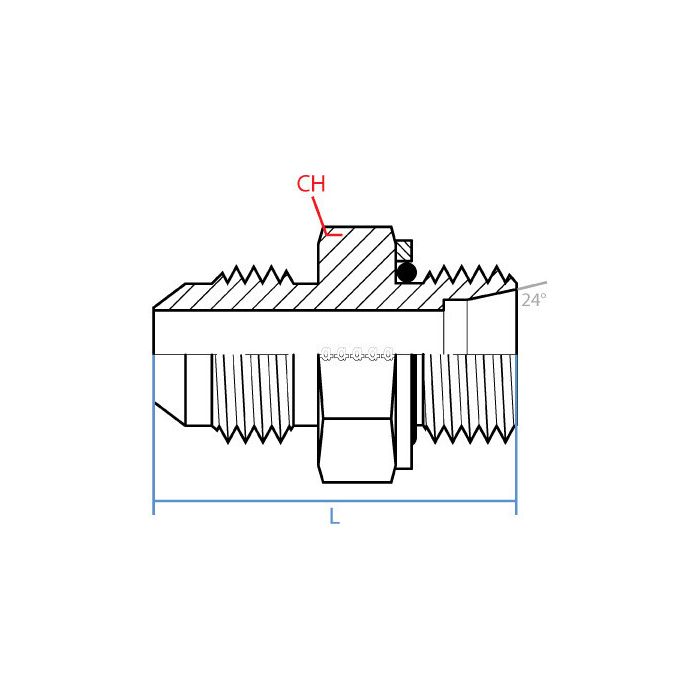

CH Width 41mm	L Length 53.2mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout M36 X 2.0	Side 2 Gender M	Side 2 Size S25	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-07976905, Alternate Part Number MINO-03671X00379	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9606S-12-S25-36	Product Weight 0.44 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to match up an old adapter, is this one the straight MJIC 3/4 on one end and M36 x 2.0 DIN tube on the other?

Question by: Troy H on Mar 12, 2026, 3:56 PM

For fit checks, the Side 1 connection is a male JIC in 3/4 inch size with a 1-1/16 - 12 UN thread, and Side 2 is a male DIN tube connection called out as M36 x 2.0 with S25 size. The body is straight.

Answer by: Customer Support on Mar 14, 2026, 6:11 AM

Got a line running M36 X 2.0 metric DIN on one end and need to tie into a 3/4" JIC male fitting on the other side. This the right part for that?

Question by: Floyd W on Jun 21, 2025, 6:11 PM

That's what this fitting does. One end is a 3/4" male JIC with a 1-1/16 - 12 UN thread, and the other is a male DIN tube connection at M36 X 2.0 with an S25 size. Steel construction, straight configuration, so if your line matches those callouts on both ends, you're in good shape.

Answer by: Customer Support on Jun 23, 2025, 6:50 AM
