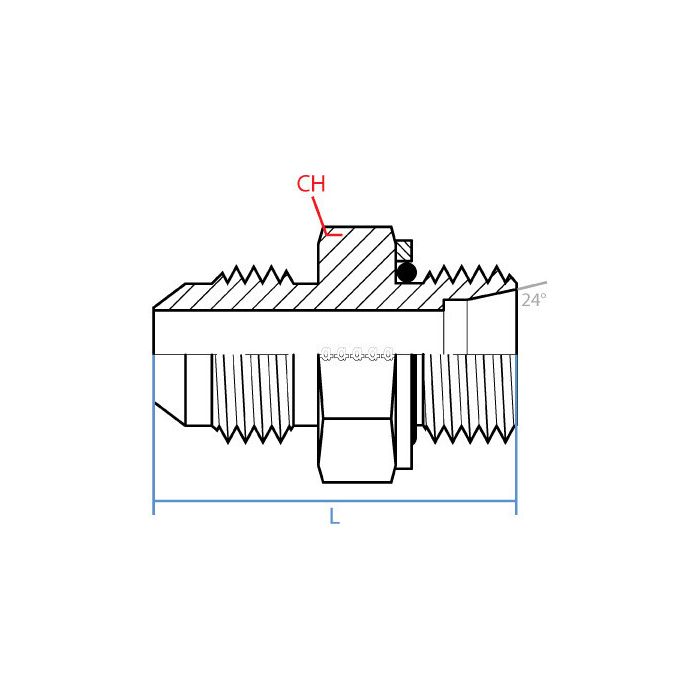

Mjic X Male Din 2353S (Sealed)

CH Width 38mm	L Length 50mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout M30 X 2.0	Side 2 Gender M	Side 2 Size S20	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-06970654, Alternate Part Number MINO-03671X00195	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9606S-12-S20-30	Product Weight 0.40 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to replace an old adapter, is this one the straight JIC male to metric DIN male deal with the M30 x 2.0 end?

Question by: Hugh R on Feb 12, 2026, 4:44 PM

Fit comes down to the two connection callouts. Side 1 is a 1-1/16 - 12 UN JIC male, and side 2 is an M30 x 2.0 DIN 2353S male tube connection (size S20). If your existing part matches those two ends, this is the same style of straight sealed adapter.

Answer by: Customer Support on Feb 14, 2026, 2:03 PM

What kind of steel is this adapter made from?

Question by: Larry A on Feb 19, 2026, 3:13 PM

Constructed from high-grade steel, this straight adapter ensures reliable performance, especially in demanding industrial environments.

Answer by: Customer Support on Feb 20, 2026, 6:13 PM
