Mjic X Male Din 2353S (Sealed)

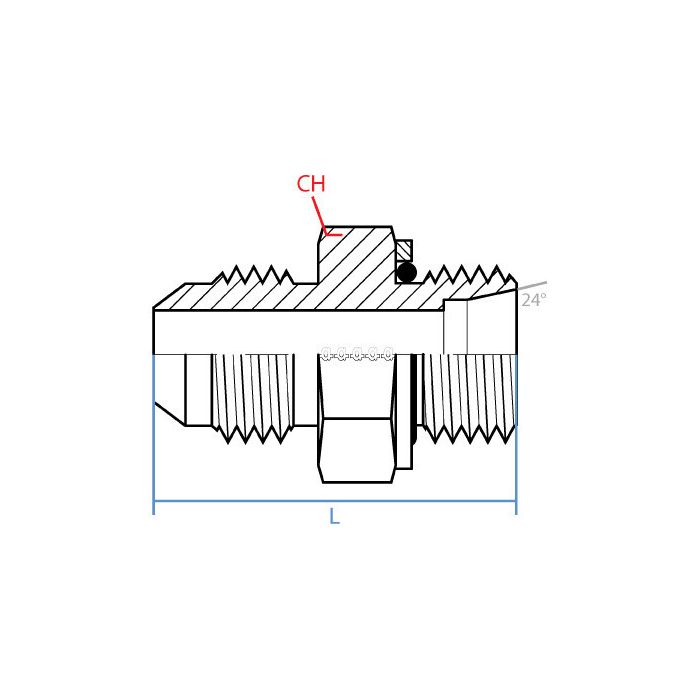

CH Width 32mm	L Length 49.7mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout M24 X 1.5	Side 2 Gender M	Side 2 Size S16	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-07976902, Alternate Part Number MINO-03671X00378	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9606S-12-S16-24	Product Weight 0.33 lbs

Product Questions & Answers 1

Product Questions & Answers

trying to hook a 3/4 JIC line over to a metric DIN tube setup. is this the right adapter for that?

Question by: Daryl L on Nov 28, 2025, 1:21 PM

On one end you get a 3/4 inch JIC male with 1-1/16 - 12 UN threads, and the other end is a male DIN 2353S tube fitting with M24 x 1.5 threads and S16 size. It’s a straight steel connector, and the sealed style is meant to help keep the connection leak-tight in hydraulic or pneumatic service.

Answer by: Customer Support on Nov 29, 2025, 6:38 PM
