Mjic X Male Din 2353S (Sealed) 9606S-10-S16-24

Specifications

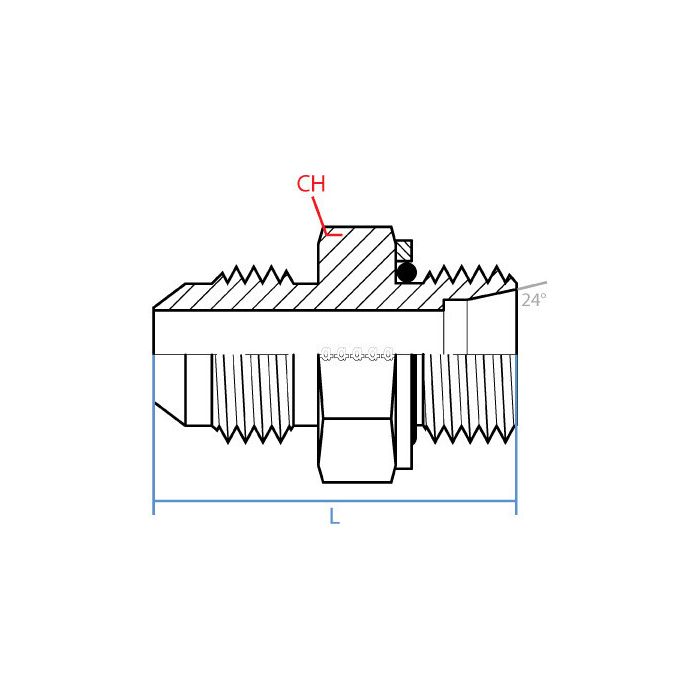

CH Width 30mm	L Length 44.2mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/8 - 14 UNF	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Jic	Side 2 Callout M24 X 1.5	Side 2 Gender M	Side 2 Size S16	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-07976899, Alternate Part Number MINO-03671X00377	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9606S-10-S16-24	Product Weight 0.24 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this here fitting hold up okay in an industrial setting?

Question by: Wade H on Jan 15, 2026, 2:47 PM

Its steel construction is designed to ensure both durability and consistent performance, making it suitable for demanding industrial applications.

Answer by: Customer Support on Jan 16, 2026, 6:03 PM

trying to hook up a 5/8 male JIC hose end to a metric DIN tube port, is this the right adapter?

Question by: Johnny M on Mar 9, 2026, 9:23 PM

On the JIC side you get a 5/8 inch male JIC with a 7/8-14 UNF thread. The other end is a male DIN 2353S metric tube connection called out as M24 x 1.5, size S16, so it bridges those two connection types in a straight steel fitting.

Answer by: Customer Support on Mar 11, 2026, 10:58 AM

Got a tube line running M24 x 1.5 metric DIN and need to tie into a JIC fitting on the other end, this the right connector for that?

Question by: Howard P on Jan 31, 2026, 3:42 PM

That's what this one's built for. One end is a 5/8" Male JIC with a 7/8-14 UNF thread, and the other is an M24 x 1.5 Male DIN tube connection. Steel construction, straight orientation, so if your layout runs in a direct line between those two connection types, this adapter bridges them without needing extra pieces in between.

Answer by: Customer Support on Feb 1, 2026, 8:32 PM
