Mjic X Male Din 2353S (Sealed) 9606S-10-S12-20

Specifications

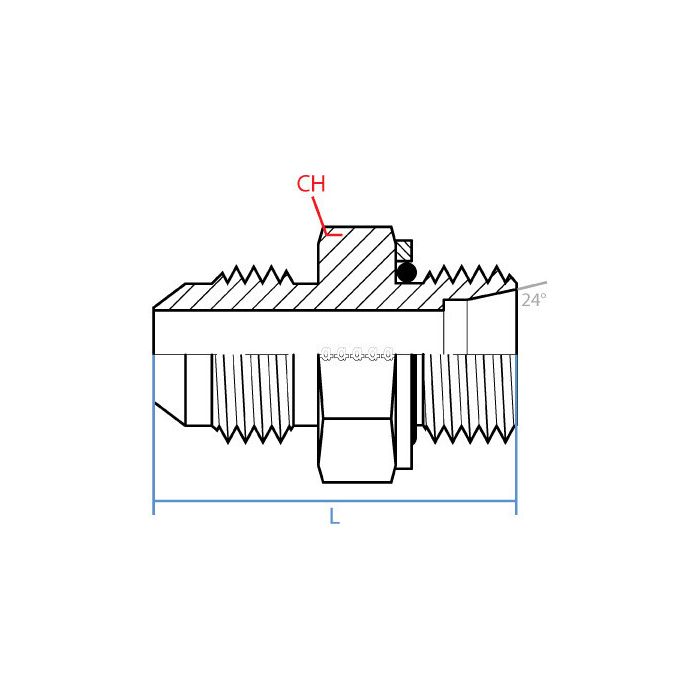

CH Width 27mm	L Length 42.6mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/8 - 14 UNF	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Jic	Side 2 Callout M20 X 1.5	Side 2 Gender M	Side 2 Size S12	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-07977249, Alternate Part Number MINO-03671X00390	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9606S-10-S12-20	Product Weight 0.13 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a line running JIC fittings on one end and metric DIN tube on the other, does this adapter go straight across without needing extra pieces in between?

Question by: Ronnie R on Nov 20, 2025, 3:10 PM

That's what this fitting handles. One side is a 7/8-14 UNF male JIC at 5/8" and the other is an M20 x 1.5 male DIN 2353S connection at S12 size. Straight body, no extra unions or couplers needed. It's a single-piece steel adapter built to bridge those two thread standards in one shot.

Answer by: Customer Support on Nov 22, 2025, 1:32 PM

i’ve got a hose end that’s 7/8-14 UNF JIC, does this adapter step that over to an M20 x 1.5 DIN tube fitting?

Question by: Cody G on Jul 4, 2025, 4:24 PM

On one end you get a male JIC connection with a 7/8-14 UNF thread and a 5/8 inch size, and the other end is a male DIN tube connection with an M20 x 1.5 thread in S12. It’s a straight steel adapter meant to join those two connection styles.

Answer by: Customer Support on Jul 6, 2025, 9:58 AM
