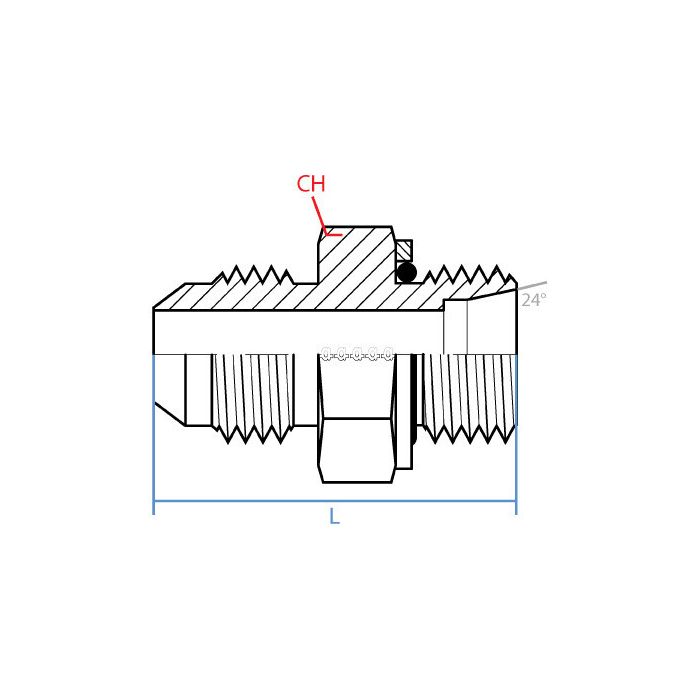

Mjic X Male Din 2353S (Sealed)

CH Width 32mm	L Length 43.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout M24 X 1.5	Side 2 Gender M	Side 2 Size S16	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9606S-08-S16-24	Product Weight 0.20 lbs

Product Questions & Answers 2

Product Questions & Answers

got a hose end that’s 1/2 JIC, will this adapter screw right on and then go into an S16 DIN tube port?

Question by: Steve A on Jan 7, 2026, 5:57 PM

The JIC side is a 3/4 - 16 UNF male thread sized for 1/2 inch JIC, and the other side is an M24 x 1.5 male thread made to match an S16 DIN tube connection (DIN 2353S sealed). If those are the two ends you are mating to, the thread sizes and types line up.

Answer by: Customer Support on Jan 9, 2026, 10:42 AM

fitting goes from JIC on one end to DIN tube on the other -- what sizes exactly are we talking on both sides?

Question by: Tammy J on Aug 8, 2025, 5:04 PM

On the JIC side you've got a 3/4-16 UNF male thread, which is your standard 1/2" JIC size. The other end is M24 x 1.5 male thread, sized for S16 DIN tube connections. Both ends are male, so keep that in mind when you're planning your port or hose end connections.

Answer by: Customer Support on Aug 10, 2025, 6:30 AM
